Parker PHastkrimp Production Crimper

    Parker Crimper Advantage

    • Parker's eight segment crimp dies provide a smooth, even 360 degree crimp.
    • Bottom-loading operation makes it easy to handle long hose assemblies.
    • Parker dies are linked to keep die segments together - no loose parts to mismatch.
    • Parker dies are color-coded for easy identification and fast set-up.
    • Parker's exclusive Parkalign feature positions the fitting in the dies perfectly every time.

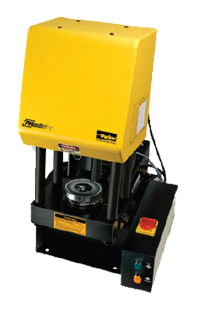

    Parker Phastkrimp crimper

    Parker PHastkrimp Hose Crimper

    Features: Fast bench mount unit; Push button power on demand design; Crimps both steel and stainless steel fittings.

    Dimensions: 24” wide, 33” deep, 38” high

    Weight: 550 lbs (with hand pump)

    Rating: 60 ton force @ 4,200 psi maximum

    Cycle time: 6 seconds

    Use with hoses: 351TC, 351ST, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 421WC, 302/301, 301LT, 304, 341, 381, 601, 604, 881, 701, F42 (-8 ONLY), 711, 721, 721TC, 721ST, 772TC, 772ST, 774, 731, 78C, 781, 782TC, 782ST, 213, 285, 293, 201, 206, 221FR, 225, 244, 266, CAH, SS25UL, 811, 811HT, 881, AX, BXX

    Fitting series: 26, 43, 70, 71, 73, 78, 81 and HY Series

    Sizes: 1/4" - 1" Compact spiral hose, 1-1/4" 1&2 Wire hose and spiral hose inch

    Power: 1 Phase/230 Volt or 3 Phase/230 Volt
