THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER. The information below is for your reference only.

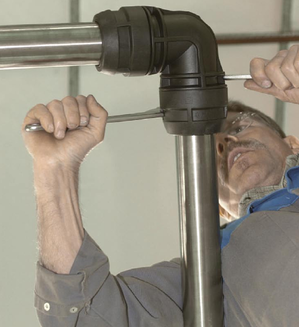

Transair advanced industrial water piping system enables rapid and easy installation. The quick pipe-to-pipe and component to pipe make installation of a new water distribution piping system fast and easy, keeping the down time to a minimum. Not only is the initial installation fast with Transair, all components are reusable so the system can be disassembled and re-assembled if needed.

Quick modification is another great advantage of using Transair technology – drops can be installed in minutes. No time consuming welding is required to install or modify the Transair industrial water piping system.

Transair technology takes into account the specific requirements of each pipe size – three different quick connections are used:



  • Push-to-connect connectors for 1/2” and 3/4” diameter piping

  • Double-clamp ring connectors for 1-1/2” and 2” diameter piping

  • Clamp and cartridge connections for 3” and 4” diameter piping



Component Selection


 Transair Stainless Steel Piping

Stainless Steel Pipe

 Transair connectors for industrial water piping

Connectors

 Transair wall brackets for industrial water piping

Wall Brackets

 Transair valves for industrial water piping

Valves



Accessories



Tools



Technical Specifications


Fluid Compatibility – Industrial water (Compatible with additives like glycol or inhibitors, which prevent the formation of algae or fungus)

Maximum Working Pressure - 145 psi

Working Temperature Range - Sizes 1/2”, 3/4” – from -4°F to +185°F, other sizes – from -4°F to +140°F

Expansion Coefficient – 0.016”/ft/°F

Fire Resistance – All Transair components are non-flammable with no propagation of flame. Pipe-to-pipe and threaded connectors, ball valves and butterfly valves conform to the UL94HB standard.

Electrical conductivity – Transair components can be used when grounding and electrical continuity are required when appropriate measures are taken. Contact us for more information.

Please see Transair Industrial Water Piping catalog for full list of specifications.



Materials


TRANSAIR
COMPONENT
SIZE (NOMINAL DIAMETER)
1/2" & 3/4" 1-1/2" & 2" 3" & 4"
Tube Stainless steel 304L Stainless steel 304L Stainless steel 304L
Connector Body: brass
Gripping ring: stainless steel
Retaining cap: polyamide with fiberglass
O-ring: EPDM
Body, nut and clamp: polyamide with fiberglass
Seal: EPDM

90° Elbow Body: brass
Gripping ring: stainless steel
Retaining cap: polyamide with fiberglass
O-ring: EPDM
Body and nut: polyamide with fiberglass
Seal: EPDM
Body: stainless steel 304L
45° Elbow N/A Body: stainless steel 304L Body: stainless steel 304L
180° Elbow N/A Body: stainless steel 304L N/A
Tee Body: brass
Gripping ring: stainless steel
Retaining cap: polyamide with fiberglass
O-ring: EPDM
Body and nut: polyamide with fiberglass
Seal: EPDM
Body: stainless steel 304L
Reducing tee Body: brass
Gripping ring: stainless steel
Retaining cap: polyamide with fiberglass
O-ring: EPDM
N/A Body: stainless steel 304L
Threaded tee Body: brass
Gripping ring: stainless steel
Retaining cap: polyamide with fiberglass
O-ring: EPDM
N/A Body: stainless steel 304L
In-line reducer Treated brass Treated Brass Body: stainless steel 304L
End cap Body: brass
Gripping ring: stainless steel
Retaining cap: polyamide with fiberglass
O-ring: EPDM
Treated Brass Body: stainless steel 304L
Male threaded fitting Body: brass
Gripping ring: stainless steel
Retaining cap: polyamide with fiberglass
O-ring: EPDM
N/A N/A
Male adaptor N/A Treated Brass Treated Brass
Wall bracket Treated brass N/A N/A
Butterfly valve N/A Body: cast iron
Handle: aluminum
Disc and shaft: stainless steel
Body and handle: iron
Disc and shaft: stainless steel
Flange N/A Stainless steel 304L Stainless steel 304L
Valve Body: nickel-plated brass
Seal: PTFE
Body: nickel-plated brass
Seal: PTFE
Body: nickel-plated brass
Seal: PTFE
Fixing clip Stainless steel Stainless steel Stainless steel
Non slip clip Collar: zinc-plated steeel
Lining: elastomer
Collar: zinc-plated steeel
Lining: elastomer
Collar: zinc-plated steeel
Lining: elastomer
Threaded rod Steel Steel Steel
