    Spherical Bearing Mounting Style SB
    For Parker Series 2H Cylinders

    Style SB
    1.50" & 6.00" Bore

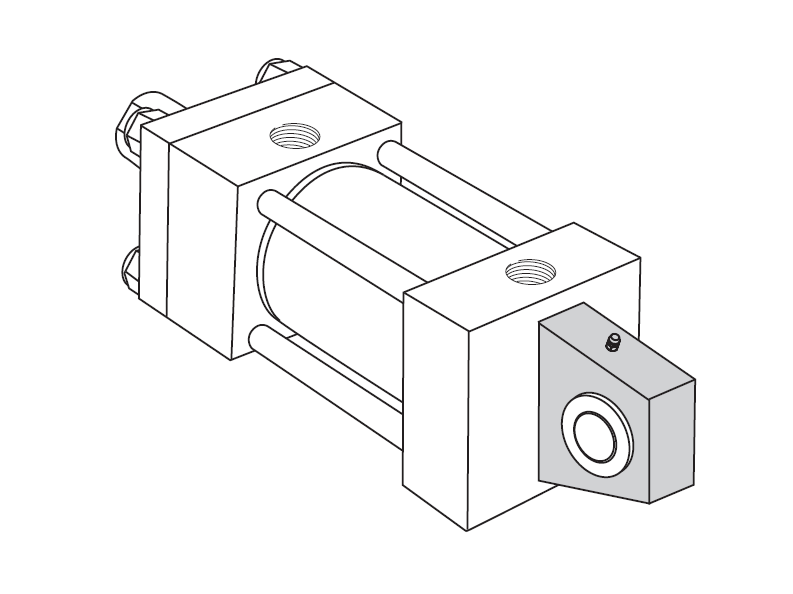

    series-2h-mounting-style-sb

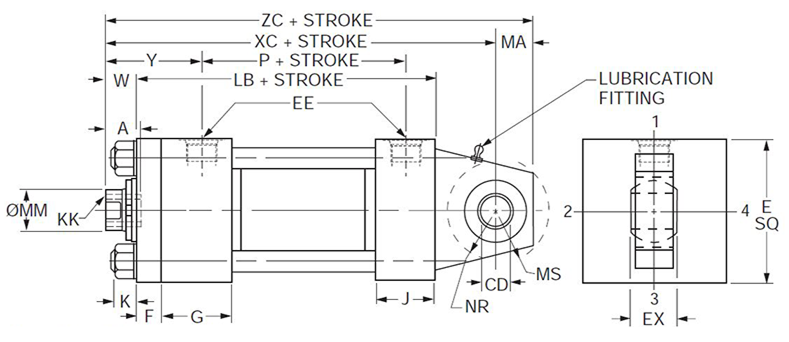

    series-2H-style-SB-dimensions

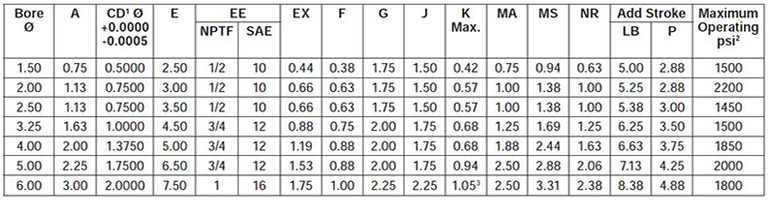

    Style SB - Dimensional and Mounting Data

    series-2H-style-SB-dimensions chart 1

    1NPTF ports are available at no extra charge.
    2SAE straight thread ports are standard and are indicated by port number.
    3 6.00" bore is constructed with tie rod nuts on both ends.

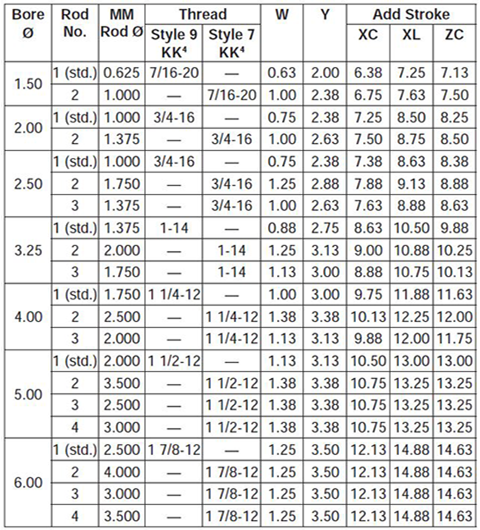

    Style SB - Dimensional and Mounting Data

    series-2H-style-SB-dimensions chart 2

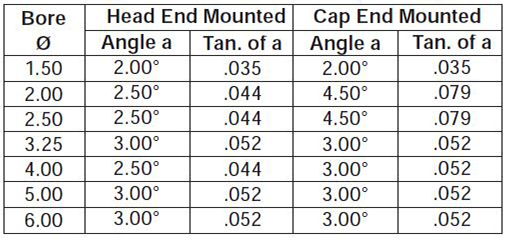

    Style SB - Recommended maximum swivel angle on each side of the cylinder centerline.

    series-2H-style-SB-dimensions chart 3

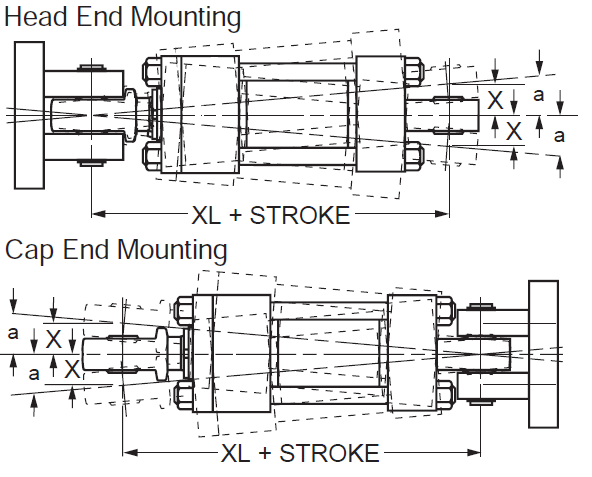

    Note: Dimension X is the maximum off center mounting of the cylinder. To determine dimension X for various stroke lengths multiply the distance between pivot pin holes by tangent of angle a. For extended position use X = XL + 2X stroke.

    series-2H-style-SB-dimensions 2

    4Style 9 and Style 7 threads listed are for a spherical rod eye (sold separately) with pin diameter that matches the cap pin.
