Cap Fixed Clevis Mounting Style BB
For Parker Series 2HB Cylinders

NFPA Style MP1
1.50" & 8.00" Bore

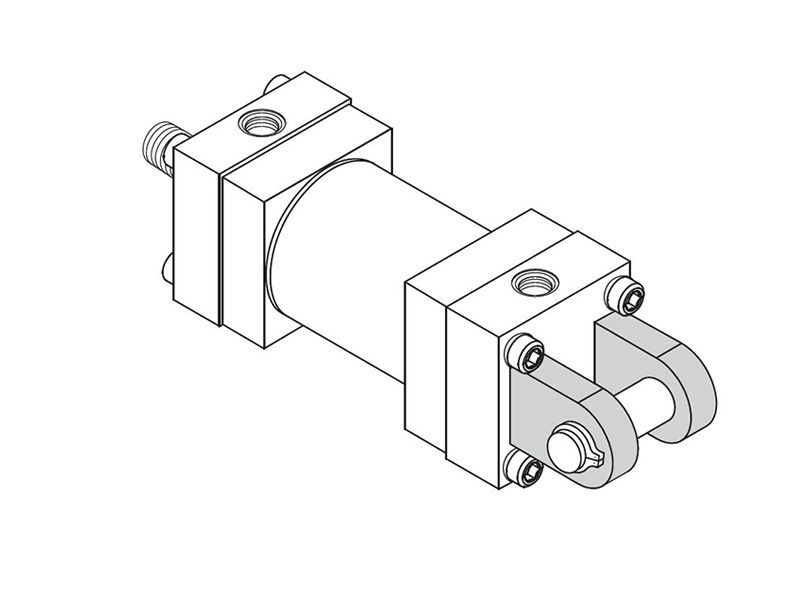

series-2hb-mounting-style-bb
series-2HB-style-BB-dimensions

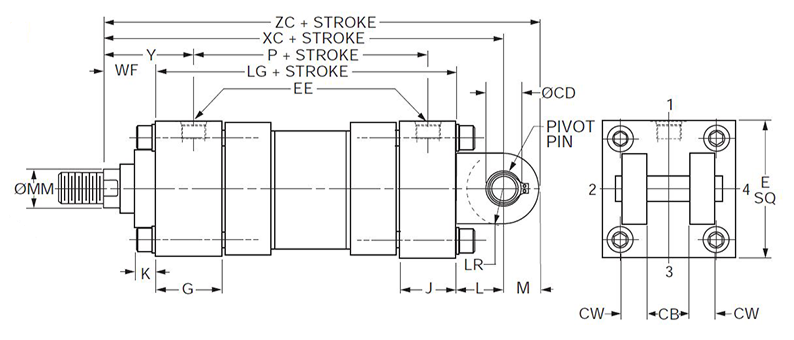

Style BB - Dimensional and Mounting Data

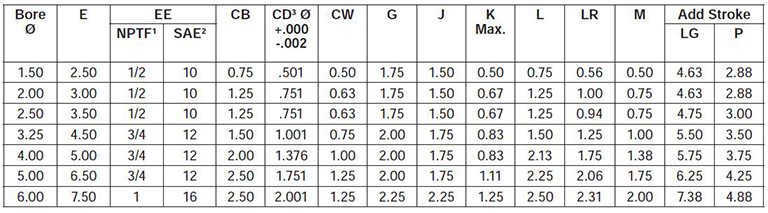

series-2HB-style-BB-dimensions chart 1

1NPTF ports are available at no extra charge.
2SAE straight thread ports are standard and are indicated by port number.
3Diameter CD is Pin Diameter.

Style BB - Dimensional and Mounting Data

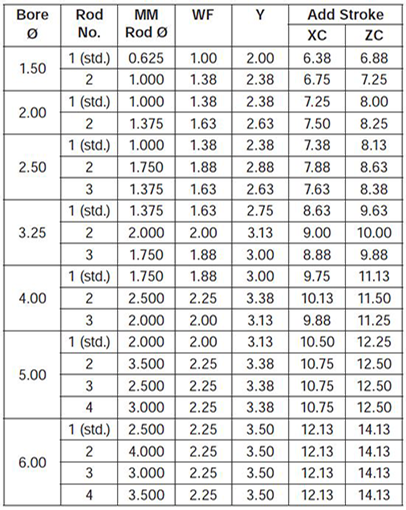

series-2HB-style-BB-dimensions chart 2
