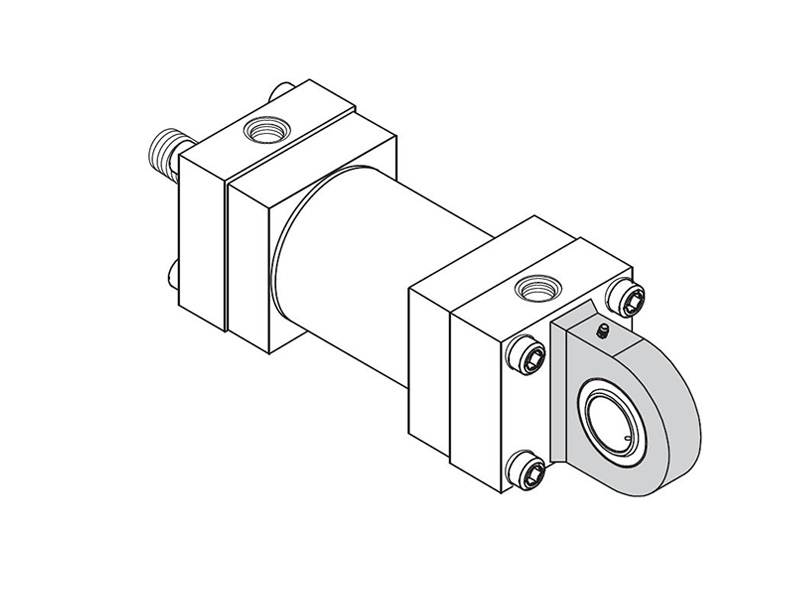

Spherical Bearing Mounting Style SE
For Parker Series 2HB Cylinders

Style SB
1.50" & 8.00" Bore

series-2hb-mounting-style-se

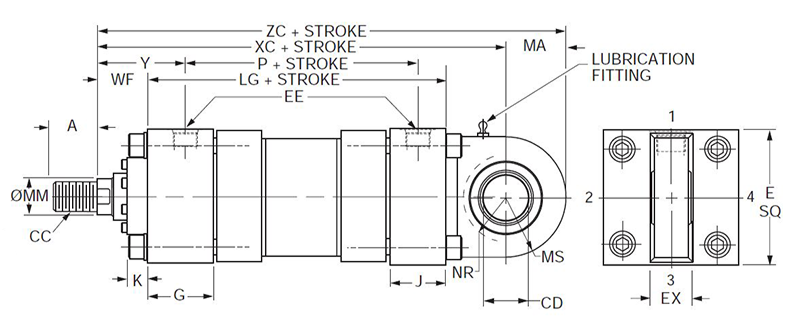

series-2HB-style-SE-dimensions

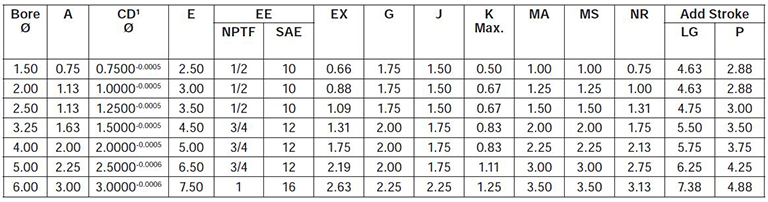

Style SE - Dimensional and Mounting Data

series-2HB-style-SE-dimensions chart 1

1Diameter CD is hole diameter.
2Maximum operating pressure at 4:1 design factor is based on tensile strength of material. Pressure ratings are based on standard bearing ratings.

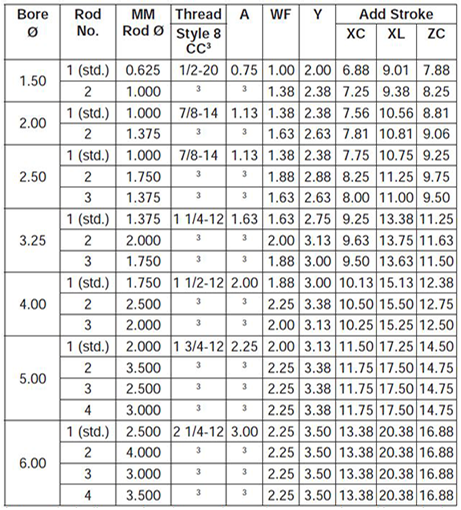

Style SE - Dimensional and Mounting Data

series-2HB-style-SE-dimensions chart 2
3To match pin diameter in rod eye and cap, when an oversize rod is required, specify rod end style ‘3’, ‘CC’ thread and ‘A’ thread length for the standard rod diameter (Rod No. 1 for the bore), and ‘WF’ for the oversize rod. Order the rod eye and clevis bracket for the required bore size from the tables on the Style SE Spherical Bearing Accessories page.

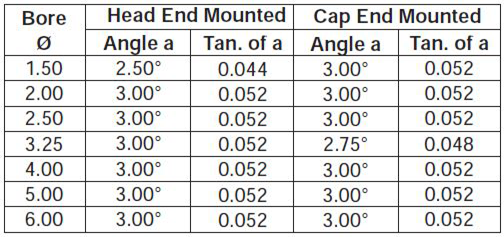

Style SE - Recommended maximum swivel angle on each side of the cylinder centerline.

series-2HB-style-SE-dimensions chart 3

Note: Dimension X is the maximum off center mounting of the cylinder. To determine dimension X for various stroke lengths multiply the distance between pivot pin holes by tangent of angle a. For extended position use X = XL + 2X stroke.

Mounting Information

series-2H-style-SB-dimensions 2
