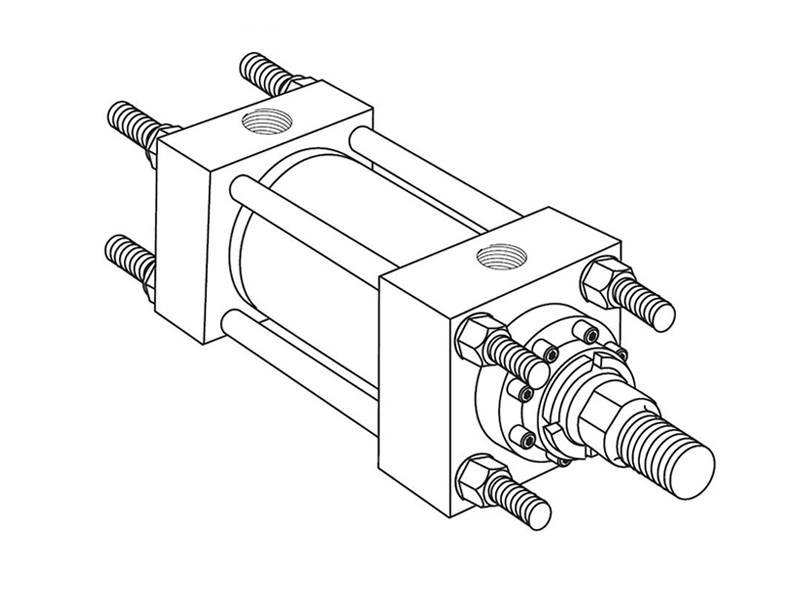

Tie Rods Extended Both Ends Mounting Style TD
For Parker Series 3H Cylinders

NFPA Style MX1
7.00" & 8.00" Bore

series-3h-mounting-style-td
series-3H-style-TD-dimensions

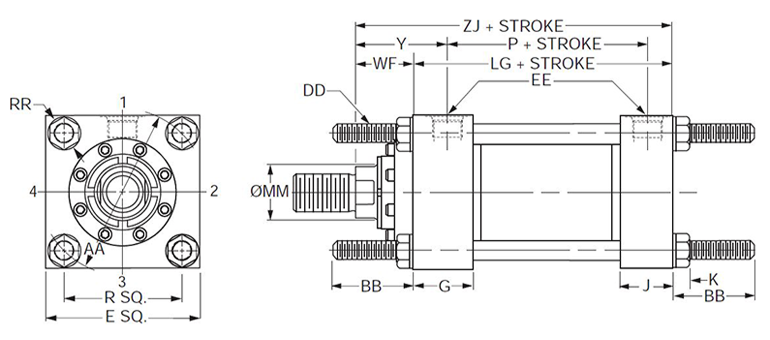

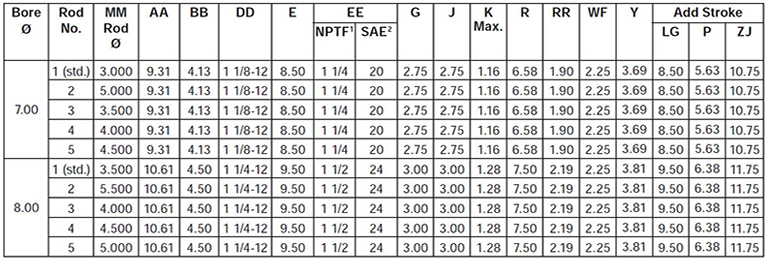

Style TD - Dimensional and Mounting Data

series-3H-style-TD-mounting-chart

1NPTF ports are available at no extra charge.
2SAE straight thread ports are standard and are indicated by port number.
