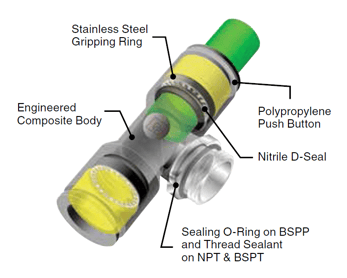

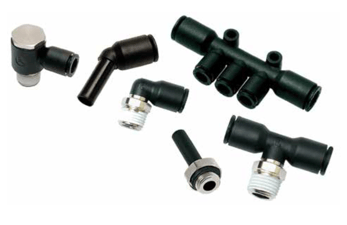

 Image of Parker Prestolok Pneumatic Fittings  Image of Composite Prestolok Construction

SKIP TO PRODUCT SELECTION SECTION

Parker Prestolok PLP is a one piece composite push-to-connect pneumatic fitting. It features a glass-reinforced nylon 6.6 body, stainless steel grip ring and nitrile D-seal. The product offers corrosion and chemical resistance, excellent tube retention and a positive seal in both static and dynamic applications.

Do not use for live swivel applications. For swivel applications, use oscillating elbows.

Nomenclature Example: W369PLP-4-2

  • W - White thread sealant
  • 3 - Composite body
  • 69 - Male elbow
  • PLP - Prestolok
  • 4 - 1/4" Tube OD
  • 2 - 1/8" Pipe thread

Specifications

Materials

  • Body: Glass-reinforced nylon 6.6
  • Collar: Nylon
  • Gripping Ring: Stainless steel
  • D-Seal: Nitrile
  • O-Rings: Nitrile
  • Base: Nickel plated brass with thread sealants on tapered components and captive seal on parallel threads

Pressure and Temperature Rating

  • Gripping Ring: Up to 290 PSI (-4°F to 175°F), depending on tubing
  • Collet Technology (3/16" size only): Up to 260 PSI (+5°F to 155°F), depending on tubing
  • Vacuum Rating: 28 in Hg

Recommended Tubing

Parker Composite Prestolok fittings are designed to work with the following tubing:

  • Nylon semi-rigid
  • Nylon
  • Polyurethane
  • Fluoropolymer

Available Configurations

Tube to Male NPTF

 W369PLP Male Elbow

Male Elbow Swivel 90° - NPT

W369PLP

 W369PLPX Extended Male Elbow

Extended Male Elbow

W369PLPX


 W379PLP 45 Degree Male Elbow

 45° Male Elbow

W379PLP



 W371PLP Male Run Tee

Male Run Tee

W371PLP

W372PLP Male Branch Tee

Male Branch Tee

W372PLP


W368PLP Male Y Connector

Male Y Connector

W368PLP




W369PLPBJ Single Banjo

Single Banjo

W369PLPBJ



  W369PLPTJ Twin Banjo

Twin Banjo

W369PLPTJ



Tube to Female NPTF



 377PLP Female Branch Tee

Female Branch Tee

377PLP



 370PLP Female Elbow

Female Elbow

370PLP



Tube to Tube


32PLP Union

Union

32PLP



365PLP Union Elbow

Union Elbow

365PLP

 364PLP Union Tee

Union Tee

364PLP

362PLP Union Y

Union Y

362PLP

 362PLPD Double Y

Double Y

362PLPD



 24PLP Multiple Tee

Multiple Tee

24PLP


 24PLPD Double Multiple Tee

Double Multiple Tee

24PLPD

347PLP Cross

Cross

347PLP



 32PLPRC 2-Tube Connector

Connector for Two Tubes

32PLPRC




Bulkhead Union


 32PLPBH Bulkhead Union

Bulkhead Union

32PLPBH



365PLPBH Bulkhead Elbow

Bulkhead Elbow

365PLPBH





32PLPBHP Plug-In Bulkhead Union

Plug-In Bulkhead Union

32PLPBHP



Tube to Metric Tube



 32PLP Converter

Converter

32PLP



32PLPSP Tube Converter

Tube Converter

32PLPSP



Tube to Male BSPT



 W369PLP Male Swivel 90 Degree Elbow

Male Elbow Swivel 90° - BSPT

W369PLP



W372PLP Male Branch Tee

Male Branch Tee

W372PLP



Standpipes



 W68PLPSP Male Standpipe NPTF

Male Standpipe NPTF

W68PLPSP







 W68PLPSP Male Standpipe BSPT

Male Standpipe BSPT

W68PLPSP





 W68PLPSP Male Standpipe BSPP

Male Standpipe BSPP

W68PLPSP


Plug-Ins



 369PLPSP Plug-In Elbow

Plug-In Elbow

369PLPSP





 369PLPSPX Extended Plug-In Elbow

Extended Plug-In Elbow

369PLPSPX



 379PLPSP Plug-In 45 Degree Elbow

Plug-In 45° Elbow

379PLPSP





 372PLPSP Plug-In Branch Tee

Plug-In Branch Tee

372PLPSP





 371PLPSP Plug-In Run Tee

Plug-In Run Tee

371PLPSP



 362PLPSP Plug-In Y

Plug-In Y

362PLPSP



67PLP Tube Reducer

Tube Reducer

67PLP



 32PLPSP Tube Expander

Tube Expander

32PLPSP


 322PLPSP Barbed Connector

Barbed Connector

322PLPSP


Auxiliary Component



 63PLP Double Male Union

Double Male Union

63PLP







 639PLP Plug

Plug

639PLP



 3151 End Cap

End Caps

3151



3110-3330 Caps Manual Release

Caps Manual Release Button

3110/3330





Metric Tube to Male BSPT



W369PLP Male Elbow

Male Elbow

W369PLP





 W369PLPX Extended Male Elbow

Extended Male Elbow

W369PLPX



 W379PLP 45 Degree Male Elbow

45° Male Elbow

W379PLP



 W372PLP Male Branch Tee

Male Branch Tee

W372PLP





 W371PLP Male Run Tee

Male Run Tee

W371PLP



W368PLP Male Y Connector

Male Y Connector

W368PLP



 W368PLPD Double Y Male Connector

Double Y Male Connector

W368PLPD



W369PLPBJ Single Banjo

Single Banjo

W369PLPBJ




Metric Tube to Male BSPP



 369PLP Metric Male Elbow

Male Elbow

369PLP





 369PLPX Metric Extended Male Elbow

Extended Male Elbow

369PLPX



 379PLP 45 Degree Male Elbow

45° Male Elbow

379PLP



 372PLP Male Branch Tee

Male Branch Tee

372PLP





 371PLP Male Run Tee

Male Run Tee

371PLP



368PLP Male Y Connector

Male Y Connector

368PLP



368PLPD Double Y Male Connector

Double Y Male Connector

368PLPD







Metric Tube to NPTF



W369PLP Male Elbow

Male Elbow

W369PLP



W372PLP Male Branch Tee

Male Branch Tee

W372PLP








Tube to Female BSPP



370PLP Female Elbow

Female Elbow

370PLP





Metric Tube to Metric Tube


32PLP Union

Union

32PLP



365PLP Union Elbow

Union Elbow

365PLP

 364PLP Union Tee

Union Tee

364PLP



362PLP Union Y

Union Y

362PLP



362PLPD Double Y

Double Y

362PLPD



24PLP Multiple Tee

Multiple Tee

24PLP


24PLPD Double Multiple Tee

Double Multiple Tee

24PLPD



 347PLP Cross

Cross

347PLP



 347PLP Unequal Cross

Unequal Cross

347PLP





32PLPRC 2-Tube Connector

Connector for Two Tubes

32PLPRC





32PLPDRC 3-Tube Connector

Connector for Three Tubes

32PLPDRC





Metric Bulkhead Union


 32PLPBH Bulkhead Union

Bulkhead Union

32PLPBH



 365PLPBH Bulkhead Elbow

Bulkhead Elbow

365PLPBH





Metric Plug-Ins



369PLPSP Plug-In Elbow

Plug-In Elbow

369PLPSP





369PLPSPX Extended Plug-In Elbow

Extended Plug-In Elbow

369PLPSPX



379PLPSP Plug-In 45 Degree Elbow

Plug-In 45° Elbow

379PLPSP





 372PLPSP Plug-In Branch Tee

Plug-In Branch Tee

372PLPSP





 371PLPSP Plug-In Run Tee

Plug-In Run Tee

371PLPSP




 362PLPSP Plug-In Y

Plug-In Y

362PLPSP

 67PLP Tube Reducer

Tube Reducer

67PLP



 32PLPSP Tube Expander

Tube Expander

32PLPSP



 322PLPSP Barbed Connector Metric

 Barbed Connector

322PLPSP





 362PLPDSP Plug-In Multiple Y

Plug-In Multiple Y

362PLPDSP





Metric Banjo Fittings




 369PLPBJB Single Banjo

Single Banjo

369PLPBJ





 369PLPBJB Single Banjo Body

Single Banjo Body

369PLPBJB



 32PLPDJB Double Banjo Body

Double Banjo Body

32PLPDJB



 369PLPTJB Twin Banjo Body

Twin Banjo Body

369PLPTJB





 68BJB Single Banjo Bolt

Single Banjo Bolt

68BJB



 68BJBD Double Banjo Bolt

Double Banjo Bolt

68BJBD



68BJBT Triple Banjo Bolt

Triple Banjo Bolt

68BJBT



 66BJB Female Banjo Bolt

Female Banjo Bolt

66BJB


 376PLPBJ Banjo With Female Bolt

Banjo with Female Bolt

376PLPBJ



369PLPTJ Twin Banjo

Twin Banjo

369PLPTJ



 32PLPDJ Double Banjo

Double Banjo

32PLPDJ




Metric Auxiliary Component



 63PLP Double Male Union

Double Male Union

63PLP







 639PLP Plug

Plug

639PLP





 3151 End Cap

End Caps

3151





 3110-3330 Caps Manual Release

Caps Manual Release Button

3110/3330





For information on sizes and pricing, please call us at 888.715.4673, email us at hfe@hfeweb.com or fill out a contact form on this page to get answers to your questions.
