Connect Under Pressure Hydraulic Quick Couplers | Parker 5000 Series Couplers

Parker 5000 Series QC - Up to 1" Body Size COUPLERS


Sizes 1/2"


Go to Parker 5000 Series Nipples
Select Another Hydraulic QC



Specifications for Parker 5000 Series



Body
Size

in.

Part
No.

Steel

Thread
Size

NPTF

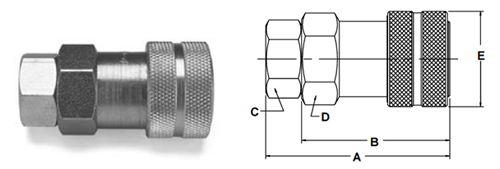

Dimensions (in.)

Overall
Length

A

Wrench
Flats

C

Largest
Diameter

E

Complete

Coupling

Part Number

1/2

5050-4

1/2-14

2.88

1.06

1.52

5000-4



Body Size (in.)

1/2

Rated Pressure (PSI)

2500

Rated Flow (GPM)

12

Temperature Range (std seals)

-40° to +250°F
