Connect Under Pressure Hydraulic Quick Couplers | Parker 8200 Series Couplers

Parker 8200 Series QC - Up to 1" Body Size COUPLERS

Female Thread
Sizes 1/2"

Go to Parker 8200 Series Nipples
Select Another Hydraulic QC



Specifications for Parker 8200 Series



Body
Size

(in.)

Part
No.

Steel

Thread
Size

NPSF

Thread
Size

ORB

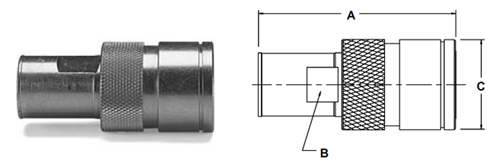

Dimensions (in.)

Overall
Length

A

Wrench
Flats

B

Largest
Diameter

C

1/2

8250-4

1/2-14

–

3.29

0.87

1.50

1/2

8250-15

–

3/4-16

3.29

0.87

1.50

1/2

8250-16

–

7/8-14

3.29

0.87

1.50



Body Size (in.)

1/2

Rated Pressure (PSI)

3000

Rated Flow (GPM)

12

Temperature Range (std seals)

-40° to +250°F
