Connect Under Pressure Hydraulic Quick Couplers | Parker 9200 Series Couplers

Parker 9200 Series QC - Up to 1" Body Size COUPLERS


Sizes 1/2"

Go to Parker 9200 Series Nipples
Select Another Hydraulic QC



Specifications for Parker 9200 Series



Body
Size

in.

Part
No.

Steel

Thread
Size

NPTF

Thread
Size

ORB

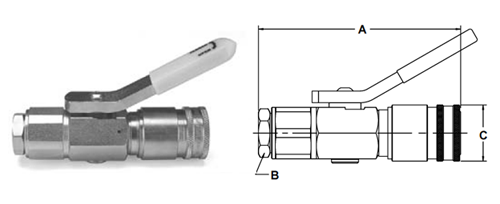

Dimensions (in.)

Overall
Length

A

Wrench
Flats

B

Largest
Diameter

C

1/2

9250-4-320*

1/2-14

–

5.37

1.13

1.50

1/2

9250-6-320*

–

9/16-18

5.37

1.13

1.50

1/2

9250-15-320*

–

3/4-16

5.37

1.13

1.50

1/2

9250-16-320*

–

7/8-14

5.37

1.13

1.50

*1/2

9250-334**

–

9/16-18

5.37

1.13

1.50

*  -320 indicates lower sleeve spring force for easier connection when coupler is not mounted in a clamp.

** -334 couplers connect with 1/4" ISO 7241-B series nipples.

Body Size (in.)

1/2

Rated Pressure (PSI)

3000

Rated Flow (GPM)

12

Temperature Range (std seals)

-40° to +250° F
