General Purpose Hydraulic Quick Couplers | Parker 60 Series Steam Couplers

Parker 60 Series QC - Up to 1" Body Size  Parker 60 Series QC - 1-1/2" - 2-1/2" Body Size COUPLERS

Female Pipe Thread
Sizes 1/4" - 1"

Standard Seal Material: Ethylene Propylene
Temperature Range: Up to +400°F

Go to Parker 60 Series Steam Nipples
Select Another Hydraulic QC

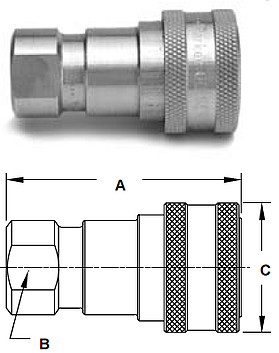

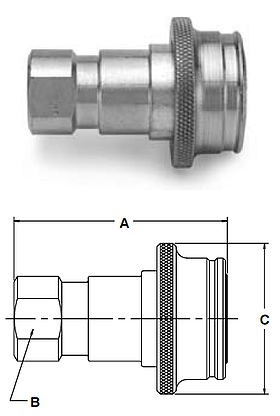

 All Configurations except 3/8"  3/8" Configuration



Specifications for Parker 60 Series Steam Quick Couplers





Body

Size

(in.)

Part

No.

Brass

Thread

Size

NPTF

Dimension (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/4

BH2-60-STM

1/4-18

2.26

0.81

1.14

3/8*

H3-68

3/8-18

2.50

0.88

1.77

1/2

BH4-60-STM

1/2-14

2.87

1.12

1.77

3/4

BH6-60-STM

3/4-14

3.56

1.31

2.14

1

BH8-60-STM

1-11 1/2

4.18

1.62

2.52
