High Flow Hydraulic Quick Couplers | Parker ST Series Nipples

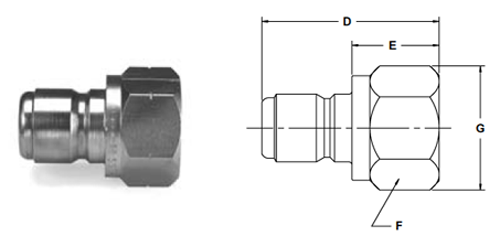

Parker ST Series QC - Up to 1" Body Size NIPPLES

Female Pipe Thread
Sizes 1/8" - 1 1/2"


Go to Parker ST Series Couplers
Select Another Hydraulic QC



Specifications for Parker ST Female Pipe Thread Nipples



Body

Size

(in.)

Part

No.

Brass

Part

No.

Steel

Part No.

Type 303

Stainless

Thread

Size

NPTF

Dimensions (in.)

Overall

Length

D

Exposed

Length

E

Wrench

Flats

F

Largest

Diameter

G

1/8

BST-N1

ST-N1

SST-N1

1/8-27

0.98

0.57

0.56

0.65

1/4

BST-N2

ST-N2

SST-N2

1/4-18

1.46

0.74

0.75

0.87

3/8

BST-N3

ST-N3

SST-N3

3/8-18

1.62

0.96

0.088

1.59

1/2

BST-N4

ST-N4

SST-N4

1/2-14

1.85

0.95

1.13

1.30

3/4

BST-N6

ST-N6

SST-N6

3/4-14

2.15

1.09

1.38

1.59

1

BST-N8

ST-N8

SST-N8

1-11 1/2

2.35

1.18

1.63

1.88

1 1/4

BST-N10

1 1/4-11 1/2

2.38

1.11

2.00

2.31

1 1/2

BST-N12

1 1/2-11 1/2

2.81

1.17

2.38

2.74

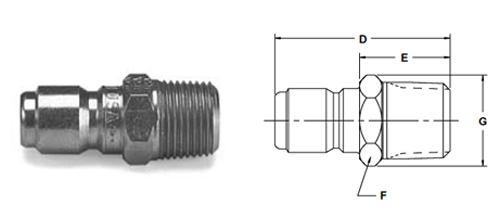

Parker ST Series QC - Up to 1" Body Size NIPPLES

Male Pipe Thread
Sizes 1/8" - 1 1/2"


Go to Parker ST Series Couplers
Select Another Hydraulic QC



Specifications for Parker ST Male Pipe Thread Nipples



Body

Size

(in.)

Part

No.

Brass

Part

No.

Steel

Part No.

Type 303

Stainless

Thread

Size

NPTF

Dimensions (in.)

Overall

Length

D

Exposed

Length

E

Wrench

Flats

F

Largest

Diameter

G

1/8

BST-N1M

ST-N1M

SST-N1M

1/8-27

1.04

0.63

0.44

0.51

1/4

BST-N2M

ST-N2M

SST-N2M

1/4-18

1.53

0.81

0.56

0.65

3/8

BST-N3M

ST-N3M

SST-N3M

3/8-18

1.69

0.86

0.69

0.79

1/2

BST-N4M

ST-N4M

SST-N4M

1/2-14

1.94

1.01

0.88

1.01

3/4

BST-N6M

ST-N6M

SST-N6M

3/4-14

2.19

1.11

1.06

1.23

1

BST-N8M

ST-N8M

SST-N8M

1-11 1/2

2.51

1.34

1.38

1.59

1 1/4

BST-N10M

1 1/4-11 1/2

2.85

1.60

1.88

2.17

1 1/2

BST-N12M

1 1/2-11 1/2

3.25

1.59

2.13

2.45





Body Size (in.)

 1/8

1/4

3/8

1/2

3/4

1

1 1/4

1 1/2

Rated Pressure (PSI)

Brass Cplr/Npl 2500

2500

5200

2700

2200

1700

1200

1700

1400

Brass Cplr/Steel Npl 2600

2600

5500

3500

2700

2700

2000

SS Cplr/Npl 4200

4200

6700

5500

3000

3000

1700

Rated Flow 3

3

6

12

12

28

50

76

100

Temperature Range (std seals)

-40° to +250°F
