Non-Spill Hydraulic Quick Couplers | Parker FEM Series

Parker FEM Series Hydraulic Couplers Key Features

  • Meets or exceeds ISO 16028 specification design and test requirements.
  • Wider size variations and increased pressures.
  • Steel construction, with Chromium-6 Free plating. Hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.
  • ISO-16028 Interface for universal interchangeability.
  • Modular design for increased flexibility with fitting port options.
  • Brinell relief on male half to increase life and resist wear.
  • Induction hardened locking surface to resist brinelling, damage and abuse.
  • Heat Treated components to resist scratches and wear.
  • Smooth flow path for low pressure drop.
  • Heavy locking collar to resist damage and abuse.
  • Blow-out resistant seal on male half seal prevents damage and premature failure with residual system pressure.
  • Push-to-connect locking mechanism.
  • Sleeve lock is a non-standard item.

FEM Series Product Specifications

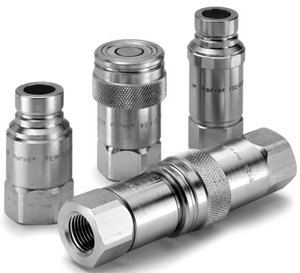

FEM Series Couplers FEM Series Nipples



Parker FEM couplers are designed for use in the construction, utility and agricultural equipment markets. FEM Series couplings are intended to meet the stringent design and pressure requirements of ISO 16028.

As with all Parker flush-face designs the non-spill feature eliminates hydraulic spillage and air inclusion when connecting or disconnecting hydraulic attachments.

The FEM Series is also ideal for many other applications where hydraulic spillage is a concern and global interchangeability with other manufacturers is important.
