Non Spill Hydraulic Quick Couplers | Parker FH Series Couplers

Parker FH Series QC - Up to 1" Body Size COUPLERS

Sizes 3/8"

Go to Parker FH Series Nipples
Select Another Hydraulic QC



Specifications for Parker FH Series



Body

Size

(in.)

Part

No.

Steel

Thread

Size

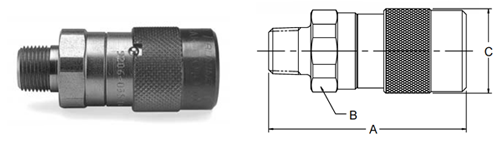

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

3/8

FH-371-6FP

3/8 -18 NPTF

2.63

1.12

1.23

3/8

FH-371-6MP

3/8 -18 NPTF

2.85

1.12

1.23

3/8

FH-371-6FB

G3/8 -BSPP

2.55

1.12

1.23

Standard Port Configurations

FP - Female Pipe Thread

MP - Male Pipe Thread

FB - Female British Standard Parallel



Body Size (in.)

3/8

Rated Pressure (PSI)

10,000

Rated Flow (GPM)

6

Temperature Range

-40° to +250° F

Spillage (ML) (max. per disconnect)

.020

Air Inclusion (ML) (max. per connect)

.070
