Non Spill Hydraulic Quick Couplers | Parker FS Series Nipples
 |
NIPPLES Female Pipe Thread Sizes 1/4" - 1" Go to Parker FS Series Couplers Select Another Hydraulic QC |

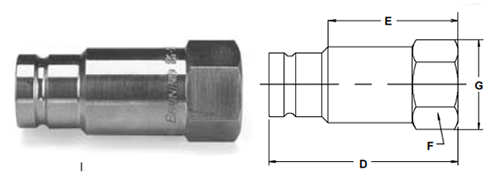

Specifications for Parker FS Series
|
Body Size (in.) |
Part No. |
Thread Size |
Dimensions (in.) |
|||
|
Overall Length D |
Exposed Length E |
Wrench Flats F |
Largest Diameter G |
|||
|
1/4 |
FS-252-4FP |
1/4-18 NPT |
1.66 |
1.14 |
1.00 |
1.06 |
|
1/4 |
FS-252-4MP |
1/4-18 NPT |
1.87 |
1.34 |
1.00 |
1.06 |
|
1/4 |
FS-252-6FO |
9/16-18 UNF |
1.66 |
1.26 |
1.00 |
1.06 |
|
3/8 |
FS-372-6FP |
3/8-18 NPT |
2.31 |
1.71 |
0.94 |
1.08 |
|
3/8 |
FS-372-8FO |
3/4-16 UNF |
2.45 |
1.71 |
1.06 |
1.19 |
|
1/2 |
FS-502-8FP |
1/2-14 NPT |
2.75 |
2.11 |
1.12 |
1.30 |
|
1/2 |
FS-502-10FO |
7/8-14 UNF |
2.85 |
2.03 |
1.12 |
1.30 |
|
3/4 |
FS-752-12FP |
3/4-14 NPT |
3.38 |
2.47 |
1.50 |
1.73 |
|
3/4 |
FS-752-12FO |
1-1/16-12 UNF |
3.38 |
2.27 |
1.50 |
1.73 |
|
1 |
FS-1002-16FP |
1-11 1/2 NPT |
3.89 |
2.60 |
1.87 |
2.17 |
|
1 |
FS-1002-16FO |
1-5/16 12 UNF |
3.89 |
2.51 |
1.87 |
2.17 |
Standard Port Configurations
FP - Female Pipe Thread
MP - Male Pipe Thread
FO - Female Straight Thread
|
Body Size (in.) |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
|
Rated Pressure (PSI) |
2000 |
2000 |
2000 |
2000 |
2000 |
|
Rated Flow (GPM) |
3 |
6 |
12 |
28 |
50 |
|
Spillage (ML) (max. per disconnect) |
0.015 |
0.015 |
.020 |
.150 |
.250 |
|
Air Inclusion (ML) (max. per connect) |
.010 |
.020 |
.070 |
.100 |
0.182 |
|
CV |
0.9 |
1.8 |
3.0 |
7.0 |
10.1 |
|
Temperature Range (continuous) |
||
|
Part No. Seal Suffix |
Seal Compound |
Temp°F Rating |
|
None* E5 |
Fluorocarbon Ethylene Propylene (EPR) |
-15 to 400 -65 to 300 -40 to 250 -20 to 600 |
*Fluorocarbon is standard seal.
