Miniature Double Shut-Off Hydraulic Quick Couplers | Parker DM Series Nipples


Parker DM Series QC - Up to 1" Body Size NIPPLES

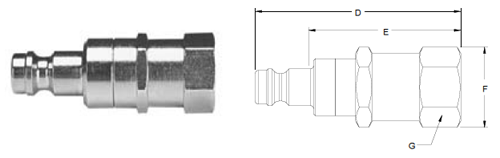

Female Pipe Thread
Sizes 1/8"

Go to Parker DM Series Couplers
Select Another Hydraulic QC



Specifications for Parker Female Pipe Thread Nipples



Body
Size

(in.)

Part
No.

Thread
Size

NPTF

Dimensions (in.)

Overall
Length

D

Exposed
Length*

E

Wrench

Flats

F

Largest
Diameter

G

1/8

DM-122-2FP

1/8-27

1.56

1.03

0.55

0.63

1/8

DM-122-4FP

1/4-18

1.97

1.44

0.67

0.78





Parker DM Series QC - Up to 1" Body Size NIPPLES

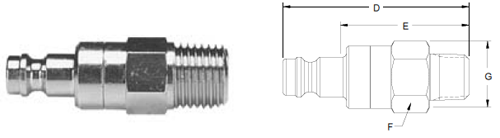

Male Pipe Thread
Sizes 1/8"

Go to Parker DM Series Couplers
Select Another Hydraulic QC



Specifications for Parker Male Pipe Thread Nipples



Body
Size

(in.)

Part
No.

Thread
Size

NPTF

Dimensions (in.)

Overall
Length

D

Exposed

Length*

E

Wrench

Flats

F

Largest
Diameter

G

1/8

DM-122-2MP

1/8-27

1.65

1.12

0.55

0.63

1/8

DM-122-4MP

1/4-18

1.77

1.24

0.55

0.63

* This dimension represents the portion that is exposed when a nipple is inserted into a Parker DM Series coupler.
