General Purpose-Manual Connect Pneumatic Quick Couplers | Male Pipe Thread | Parker 50 Series Couplers
 |
COUPLERS Sizes 1/4" Go to Parker 50 Series Male Pipe Thread Nipples Select Another Pneumatic QC |
Specifications for Parker 50 Series
|
Body |
Part |
Thread |

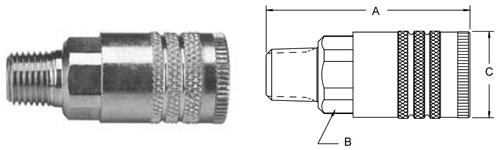

Dimensions (in.) |
||
|
Overall |
Wrench Flats |
Largest |
|||
|
1/4 |
B52 |
1/4-18 |
2.05 |
0.75 |
0.90 |
|
1/4 |
B52E |
3/8-18 |
2.08 |
0.75 |
0.90 |
|
Body Size (in.) |
1/4 |
|
Rated Pressure (PSI) |
300 |
|
Temperature Range (Std. seals) |
-40° to +250° F. |
|
Locking Device |
4 balls |
