General Purpose-Push to Connect Pneumatic Quick Couplers | Standard Hose Barb | Parker HF Series Couplers
 |
COUPLERS Sizes 1/4 - 1/2" Select Another Pneumatic QC |
Specifications for Parker HF Series - 1/4", 3/8", 1/2" Standard Hose Barb Couplers
|
Body Size (in.) |
New Part No. Brass |
Hose I.D. |

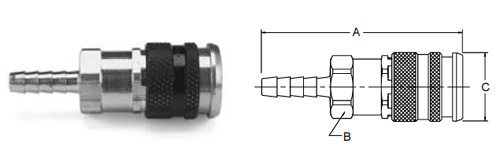

Dimensions (in.) |
||
|
Overall Length A |
Wrench Flats B |
Largest Diameter C |
|||
|
1/4 |
HF-251-4HB |
1/4 |
2.81 |
0.81 |
0.99 |
|
1/4 |
HF-251-6HB |
3/8 |
2.81 |
0.81 |
0.99 |
|
3/8 |
HF-371-6HB |
3/8 |
3.02 |
0.94 |
1.07 |
|
3/8 |
HF-371-8HB |
1/2 |
3.02 |
0.94 |
1.07 |
|
Body Size (in.) |
1/8 |
1/4 |
3/8 |
1/2 |
|
Rated Pressure (psi) |
250 |
300 |
300 |
300 |
|
Temperature Range (Std. seals) |
-40° to +250°F |
|||
|
Locking Device |
5 balls |
4 balls |
6 balls |
8 balls |
|
Vacuum Data (inches Hg) Disconnected (coupler only) Connected |
Not Recommended |
|||
|
- |
27.4 |
27.4 |
27.4 |
|
