Parker RF Series Female Pipe Thread Nipples NIPPLES

Sizes 1/4" - 3/8"

Go to Parker RF Series Female Pipe Thread Couplers
Select Another Pneumatic QC



Specifications for Parker RF Series - Female Pipe Thread



Body

Size

(in.)

NEW

Part

No.

Thread

Size

NPTF

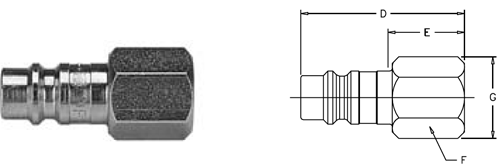

Dimensions (in.)

Overall

Length

Exposed*

Length

Wrench

Flats

Largest

Diameter

1/4

RF-254-4FP

1/4-18

1.45

0.68

0.62

0.72

1/4

RF-254-6FP

3/8-18

1.50

0.73

0.81

0.94

3/8

RF-374-6FP

3/8-18

1.53

0.78

0.81

0.94

3/8

RF-374-8FP

1/2-14

1.62

0.87

1.00

1.16

* This dimension represents a portion of the nipple that is exposed when the nipple is inserted into a Parker RF Series coupler.



Body Size (in.)

1/4

3/8

Rated Pressure (psi)

300

300

Temperature Range (std seals)

-40° to +250°F

-40° to +250°F

Locking Device

4 balls

8 balls

Vacuum Data (inches Hg)
Disconnected (coupler only)
Connected


Not Recommended
Not Recommended


Not Recommended
Not Recommended
