Parker Tool-Mate Series Pneumatic Couplings | Special Purpose - Exhaust Non Marring

Parker Tool-Mate Series Pneumatic QC

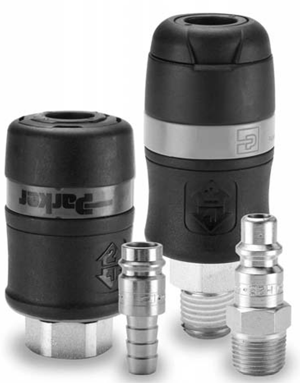

Parker Tool-Mate Exhaust Series Couplers are lightweight, easy to operate, and non-marring with easy, push-to-connect action and one handed dosconnection.

Tool-Mate Exhaust Non-Marring Couplers meet the ISO 4414 specification to allow trapped air pressure to be vented prior to disconnection.

Tool-Mate Exhaust Couplers are constructed of black Polyamide material; springs, balls, and pins are stainless steel in the PES series and 1/2" PBS series; and locking fingers in the PBS series are made of polyacetate. End ports are galvanized steel.

Tool-Mate Exhaust has a black body to designate the exhaust style coupler.

Optional materials are available - contact us with questions.



Tool-Mate Exhaust Non-Marring Series QC Dimensions & Specifications:


Choose another GP - Push-To-Connect QC
Choose another Pneumatic QC
Go back to Product Overview



PBS Tool-Mate Series is built to the Industrial Interchange profile identifiable with a Yellow ring around the body.

PES Tool-Mate Series is designed for use with high flow RF Series nipples and is identifiable with a Green ring around the body.

Operation: Tool-Mate series is a Push-to-Connect design for easy one hand operation. You must pull the body in the direction of the arrow marked 1. This will safely vent the downstream pressure. You must push the body in the direction of arrow 2 to disconnect at 0 pressure.

Parker Tool-Mate Exhaust Non-Marring Series Couplings Specifications & Performance



Body Size 1/4” 3/8” 1/2”
Rated Pressure 300 300 300
Temperature Range (°F) 0 to 160 0 to 160  0 to 160
Vacuum Service Not Recommended





Parker HF Series QC Pressure Drop Chart
