Special Purpose Exhaust-Non Marring Pneumatic Quick Couplers | Female Pipe Thread | Parker Tool Mate Industrial Interchange Series
 |
COUPLER Sizes 1/4 - 1/2" Select Another Pneumatic QC |
Specifications for Parker Tool Mate Exhaust Industrial Interchange Series
|
Body Size (in.) |
Part No |
Thread Size NPTF |

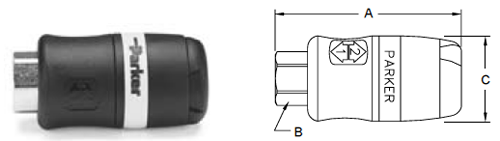

Dimensions (in.) |
||
|
Overall Length A |
Wrench Flats B |
Largest Diameter C |
|||
|
1/4" |
PBS-251-4FP |
1/4-18 |
2.60 |
0.67 |
1.19 |
|
1/4" |
PBS-251-6FP |
3//8-18 |
2.67 |
0.91 |
1.19 |
|
3/8" |
PBS-371-6FP |
3/8-18 |
2.95 |
0.82 |
1.38 |
|
3/8" |
PBS-371-8FP |
1/2-14 |
3.17 |
0.99 |
1.38 |
|
1/2" |
PBS-501-6FP |
3/8-18 |
3.25 |
1.18 |
1.62 |
|
1/2" |
PBS-501-8FP |
1/2-14 |
3.36 |
1.18 |
1.62 |
|
1/2" |
PBS-501-12FP |
3/4-14 |
3.66 |
1.18 |
1.62 |
|
Body Size |
1/4” |
3/8” |
1/2” |
|
Rated Pressure |
300 |
300 |
300 |
|
Temperature Range (°F) |
0 to 160 |
0 to 160 |
0 to 160 |
|
Vacuum Service |
Not Recommended |
||
