Special Purpose Exhaust-Non Marring Pneumatic Quick Couplers | Male Pipe Thread | Parker Tool Mate Industrial Interchange Series

Parker Tool Mate Series Exhaust Industrial Interchange Male Pipe Thread Coupler COUPLER

Sizes 1/4 - 1/2"


Select Another Pneumatic QC



Specifications for Parker Tool Mate Exhaust Industrial Interchange Series



Body

Size

(in.)

Part

No.

Thread

Size

NPTF

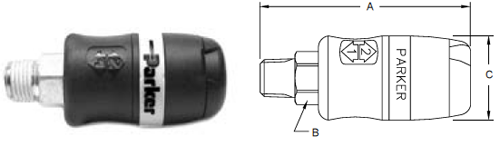

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/4"

PBS-251-4MP

1/4-18

2.97

0.67

1.19

1/4"

PBS-251-6MP

3/8-18

2.99

0.91

1.19

3/8"

PBS-371-6MP

3/8-18

3.39

0.82

1.38

3/8"

PBS-371-8MP

1/2-18

3.39

0.91

1.38

1/2"

PBS-501-8MP

1/2-18

3.70

1.18

1.62



Body Size

1/4”

3/8”

1/2”

Rated Pressure

300

300

300

Temperature Range (°F)

0 to 160

0 to 160

 0 to 160

Vacuum Service

Not Recommended
