Special Purpose Exhaust-Non Marring Pneumatic Quick Couplers | Male Pipe Thread | Parker Tool Mate Exhaust RF Interchange Series
 |
COUPLER Sizes 1/4 - 1/2" Select Another Pneumatic QC |
Specifications for Parker Tool Mate Exhaust RF Interchange Series
|
Body Size (in.) |
Part No. |
Thread Size NPTF |

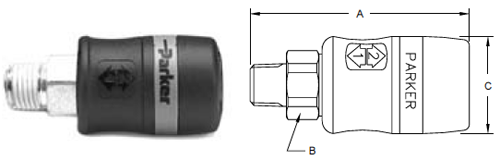

Dimensions (in.) |
||
|
Overall Length A |
Wrench Flats B |
Largest Diameter C |
|||
|
1/4" |
PES-251-4MP |
1/4-18 |
2.36 |
0.83 |
1.25 |
|
Body Size |
1/4” |
3/8” |
1/2” |
|
Rated Pressure |
300 |
300 |
300 |
|
Temperature Range (°F) |
0 to 160 |
0 to 160 |
0 to 160 |
|
Vacuum Service |
Not Recommended |
||
