PPA Series Product Specifications

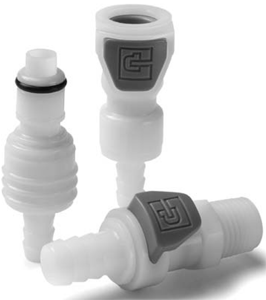

Parker PPA Series Thermoplastic Couplings

PPA Series Couplings are general purpose, thermoplastic couplings. The PPA couplers are push-to-connect and have a plastic latch for push-button release. With a fully plastic exterior and smooth face, they are non-marring to most surfaces. Note: Does NOT interchange with PPL Series.


Applications


  • Medical Devices
  • Laboratory Equipment
  • Chemical Processing
  • Food and Beverage
  • Industrial
  • Process Equipment



PPA Series Coupler Product Specifications



Parker PPA Series Thermoplastic Couplings

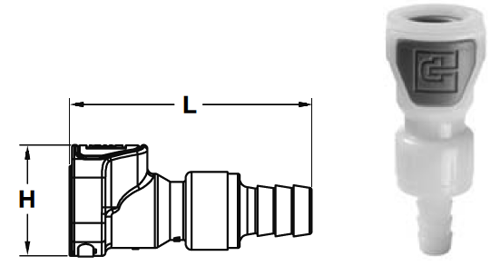

Valved Coupler

Parker PPA Series Thermoplastic Couplings

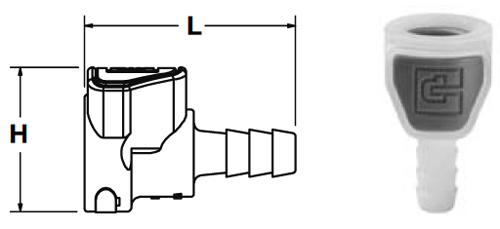

Non-Valved Coupler



Body

Size

Part Number

Valved

Port End

L

H

Part Number

Valved

Port End

L

H

1/4

1/4

PPA-251-4HB

PPA-251-6HB

Yes

Yes

1/4” Hose Barb

3/8” Hose Barb

2.03

2.04

0.93

0.93

PPA-253-4HBSB

PPA-253-6HBSB

No

No

1/4” Hose Barb

3/8” Hose Barb

1.36

1.36

0.93

0.93





PPA Series Nipple Product Specifications



Parker PPA Series Thermoplastic Couplings

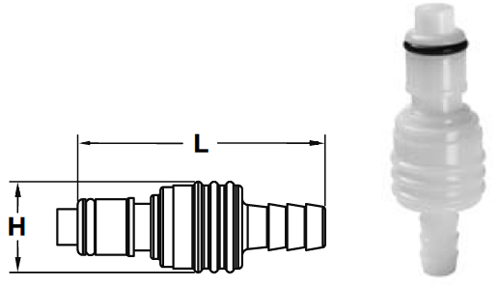

Valved Nipple

Parker PPA Series Thermoplastic Couplings

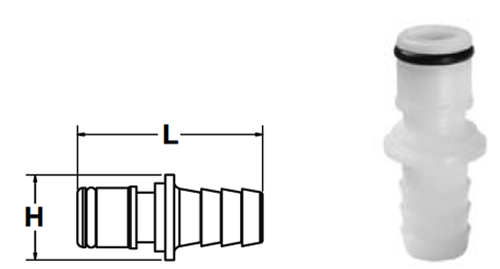

Non-Valved Nipple



Body

Size

Part Number

Valved

Port End

L

H

Part Number

Valved

Port End

L

H

1/4

1/4

PPA-252-4HB

PPA-252-6HB

Yes

Yes

1/4” Hose Barb

3/8” Hose Barb

1.89

1.75

0.71

0.71

PPA-254-4HBSB

PPA-254-6HBSB

No

No

1/4” Hose Barb

3/8” Hose Barb

1.35

1.36

0.63

0.61





  Flow Capacity Rated Pressure Temperature Material:
Body & Latch
Material: Springs O-ring
PPA Series 1/4” Vacuum to 120 PSIG -40° F to +180° F
-40° F to +82° C
Acetal Copolymer Stainless Steel Nitrile
