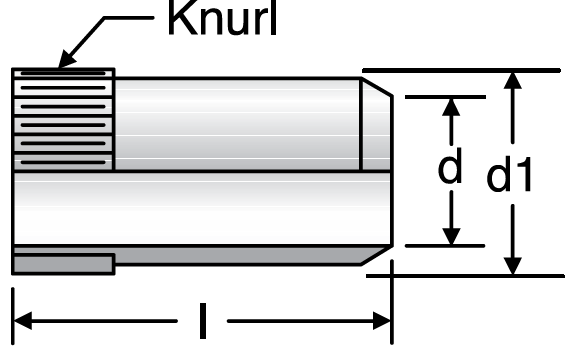

Parker VH | Tube Inserts for Metric Bite-Type Fittings | EO



 Parker VH - EO Tube Inserts



Bite-Type Tube Inserts

Part #: VH
Manufacturer: Parker



For Thin Walled Metal Tubes

TUBE
FITTING
PART #

FOR TUBE I.D. Ø (mm)

d
(mm)

d1
(mm)

L
(mm)

STANDARD
FROM STOCK

CFX

71X

MSX

VH04

4

2.6

3.8

14

·



·

VH04.5

4.5

3.1

4.3

14







VH05

5

3.6

4.8

14







VH06

6

4.6

5.8

14

·



·

VH07

7

5.6

6.8

15.5

·





VH08

8

6.6

7.8

15.5

·

·

·

VH09

9

7.6

8.8

15.5





·

VH10

10

8.6

9.8

15.5

·

·

·

VH12

12

10.2

11.8

17

·





VH13

13

11.2

12.8

17



·

·

VH14

14

12.2

13.8

17

·





VH15

15

13.2

14.8

20

·





VH16

16

14.2

15.8

20







VH17

17

15.2

16.8

20

·





VH18

18

16.2

17.8

20

·





VH19

19

17.2

18.8

16





·

VH20

20

18.2

19.8

21.5





·

VH21

21

19.2

20.8

21.5







VH22

22

20.2

21.8

23.5







VH24

24

22.2

23.8

23.5







VH25

25

23.2

24.8

23.5





·

VH26

26

24.2

25.8

23.5







VH27

27

25.2

26.8

23.5







VH30

30

27.8

29.8

26.5







VH31

31

28.8

30.8

26.5





·

VH32

32

29.8

31.8

26.5







VH33

33

30.8

32.8

26.5







VH38

38

35.8

37.8

21

·
