K-Type Cylinders | NFPA 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore Sizes | Parker

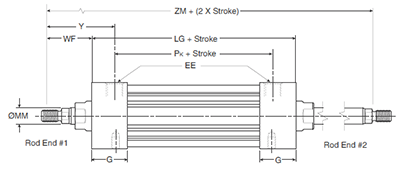

To determine dimensions for a double rod end cylinder, first refer to the desired 4MA small bore single rod mounting style. After selecting the necessary dimensions, return to this page and supplement the single rod end dimensions with those shown in the table below. Please note that double rod end cylinders have a head dimension G at both ends, and that LG replaces LF, PK replaces P, etc. The double rod end dimensions differ from, or are in addition to, those for single rod cylinders. When a double rod end cylinder has two different rod ends, please clearly state which rod end is to be available at which head end.



K-type for 1-1/2" to 5" Bore


4MA Small Bore K-Type Cylinder






Mounting Styles for Single Rod Models Corresponding Mounting Styles for Double Rod Models
C KC
CD KCB
D KD
DD KDD
F KF
G KG
NB KNB
T KT
TB KTB
TD KTD
TE KTE
TEF KTEF





K-Type Dimensions

 Bore Size
Rod # Rod Dia. MM  EE (NPTF)
 G WF Y
LG (replaces LF)
PK (replaces P)
SAK (replaces SA)
XAK (replaces XA)
SSK (replaces SS)
SNK (replaces SN)
SEK (replaces SE)
XEK (replaces XE)
 ZM   (Add 2X Stroke)
1-1/2 1 5/8 3/8 1.438 1.000 1.875 4.125 2.375 6.125 6.125 3.375 2.250 6.375 6.250 6.125
 1-1/2 2 1 3/8 1.438 1.375 2.250 4.125 2.375 6.500 6.500 3.375 - - - 5.760
 2 1 5/8 3/8 1.375 1.000 1.875 4.125 2.375 6.125 6.125 3.375 2.250 6.750 6.438 6.125
 2 3 1 3/8 1.375 1.375 2.250 4.125 2.375 6.125 6.500 3.375 2.250 6.750 6.813 6.875
 2-1/2 1 5/8 3/8 1.344 1.000 1.938 4.125 2.375 6.250 6.250 3.500 2.375 7.125 6.688 6.250
 2-1/2 3 1 3/8 1.344 1.375 2.313 4.250 2.375 6.250 6.625 3.500 2.375 7.125 7.063 7.000
 3-1/4 1 1 1/2 1.594 1.375 2.438 4.250 2.625 7.250 7.375 3.750 2.625 7.750 7.625 7.500
 3-1/4 3 1-3/8 1/2 1.594 1.625 2.688 4.750 2.625 7.250 7.625 3.750 2.625 7.750 7.875 8.000
 4 1 1 1/2 1.594 1.375 2.438 4.750 2.625 7.250 7.375 3.750 2.625 8.000 7.750 7.500
4 3 1-3/8 1/2 1.594 1.625 2.688 4.750 2.625 7.250 7.625 3.750 2.625 8.000 8.000 8.000
5 1 1 1/2 1.594 1.375 2.438 4.938 2.813 7.688 7.688 3.563 2.813 - - 7.688
5 3 1-3/8 1/2 1.594 1.625 2.688 4.938 2.813 7.688 7.938 3.563 2.813 - - 8.188
