Cap Square Flange Mounting Style HB
For Parker Series 2HD Cylinders

NFPA Style MF6
1.50" & 6.00" Bore

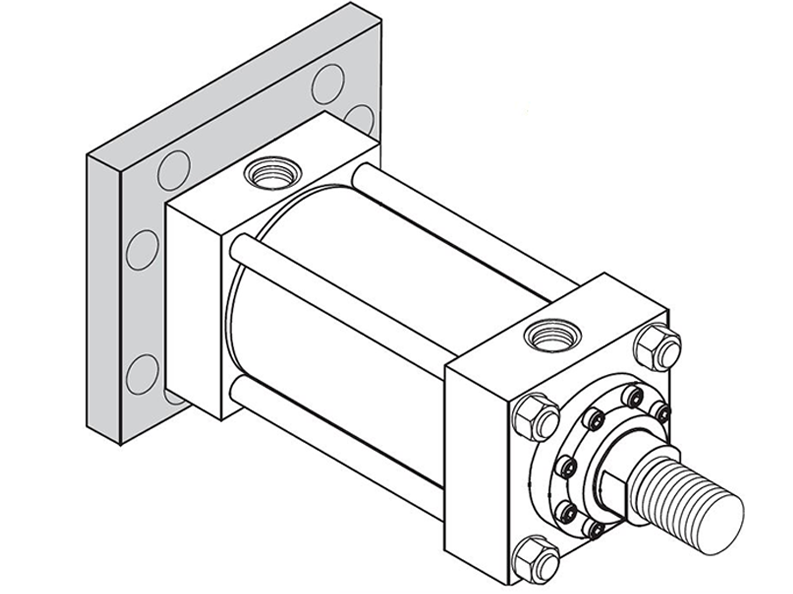

series-2hd-mounting-style-hb

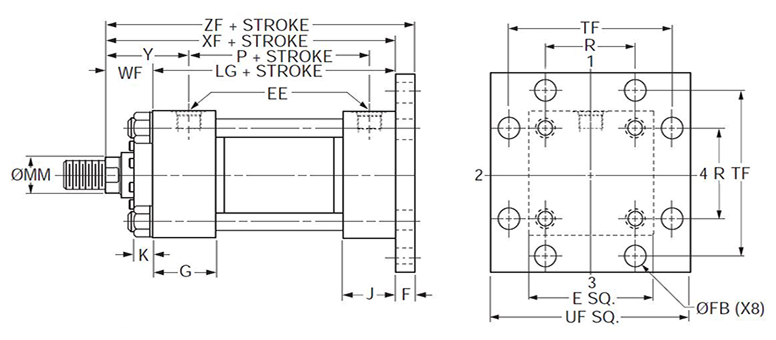

series-2HD-style-HB-dimensions

Style HB - Dimensional and Mounting Data

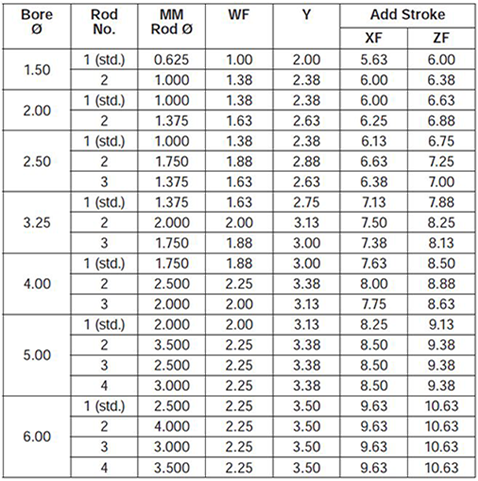

series-2HD-style-HB-dimensions chart 1

1NPTF ports are available at no extra charge.
2SAE straight thread ports are standard and are indicated by port number.

Style HB - Dimensional and Mounting Data

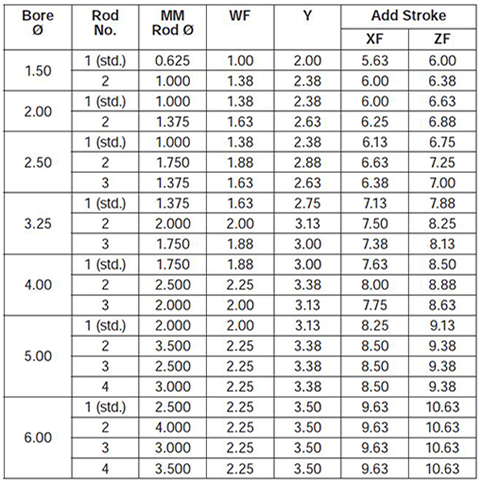

series-2HD-style-HB-dimensions chart 2
