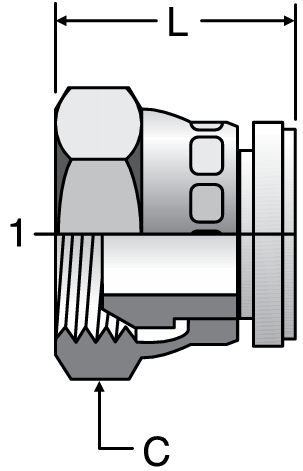

Parker FNMK4 | K4 Caps
 |
K4 Caps Part #: FNMK4
60° Cone |
|
TUBE FITTING PART # |
END SIZE |
C HEX (mm) |
L (mm) |
Dynamic (x 1,000 PSI) |
|
1 BSPP |
||||
|
S |
||||
|
2FNMK4 |
1/8 - 28 |
14 |
16.0 |
5.1 |
|
4FNMK4 |
1/4 - 19 |
19 |
20.6 |
5.1 |
|
6FNMK4 |
3/8 - 19 |
22 |
22.3 |
5.1 |
|
8FNMK4 |
1/2 - 14 |
27 |
22.7 |
2.9 |
|
10FNMK4 |
5/8 - 14 |
30 |
26.6 |
2.9 |
|
12FNMK4 |
3/4 - 14 |
32 |
28.0 |
2.9 |
|
16FNMK4 |
1 - 11 |
41 |
31.6 |
1.7 |
|
20FNMK4 |
1 1/4 - 11 |
50 |
35.9 |
1.5 |
|
24FNMK4 |
1 1/2 - 11 |
60 |
37.9 |
1.5 |
