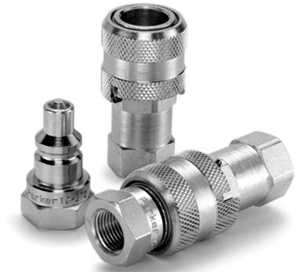

High Pressure Hydraulic Quick Couplers | Parker TC Series

Parker TC Series Hydraulic Couplers Key Features

  • Positive valve stop. The perch maintains valve alignment and provides metal to metal valve stop to insure that the valves open full–every time.
  • Precision machined valves with elastomeric seals provide for positive shut-off upon disconnection.
  • Hardened nipples and sleeves and solid barstock construction make for a quality coupling with maximum resistance to damage from hydraulic and mechanical shock.
  • Durable ball-locking mechanism assures reliable connection every time. A large number of locking balls dis¬tributes the work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life. CAUTION: These products are not to be used as swivels, rotation under pressure will result in excessive and premature wear.
  • The standard Fluorocarbon seal is designed to withstand extremely high pressures and provide reliable sealing. PTFE back-up ring provides support for the seal in high pressure applications.
  • Steel construction, Chromium-6 Free plating for corrosion resistance.

TC Series Product Specifications



TC Series Couplers TC Series Nipples



Parker TC series couplings are found in the construction, railway maintenance and house moving industries. Used on hydraulic jacking equipment, these couplers eliminate costly down time caused by improperly connected threaded types.

For use where high pressure capability is required coupled with positive coupling action. Considerably faster to use than threaded types
