Engineered Liquid Cooling Solutions for

High-Performance Data Centers

MFCP is your go-to source for scalable liquid cooling systems that support the demanding environments of AI, data analytics, and cloud computing. Our in-house experts design and implement direct-to-chip, single-phase cooling solutions that ensure reliability, performance, and energy efficiency at every level.

Scalable. Reliable. Engineered for the Future of AI and Cloud Computing.

Data Center Server Racks - 1500x1000

PARTNERING WITH THE BEST

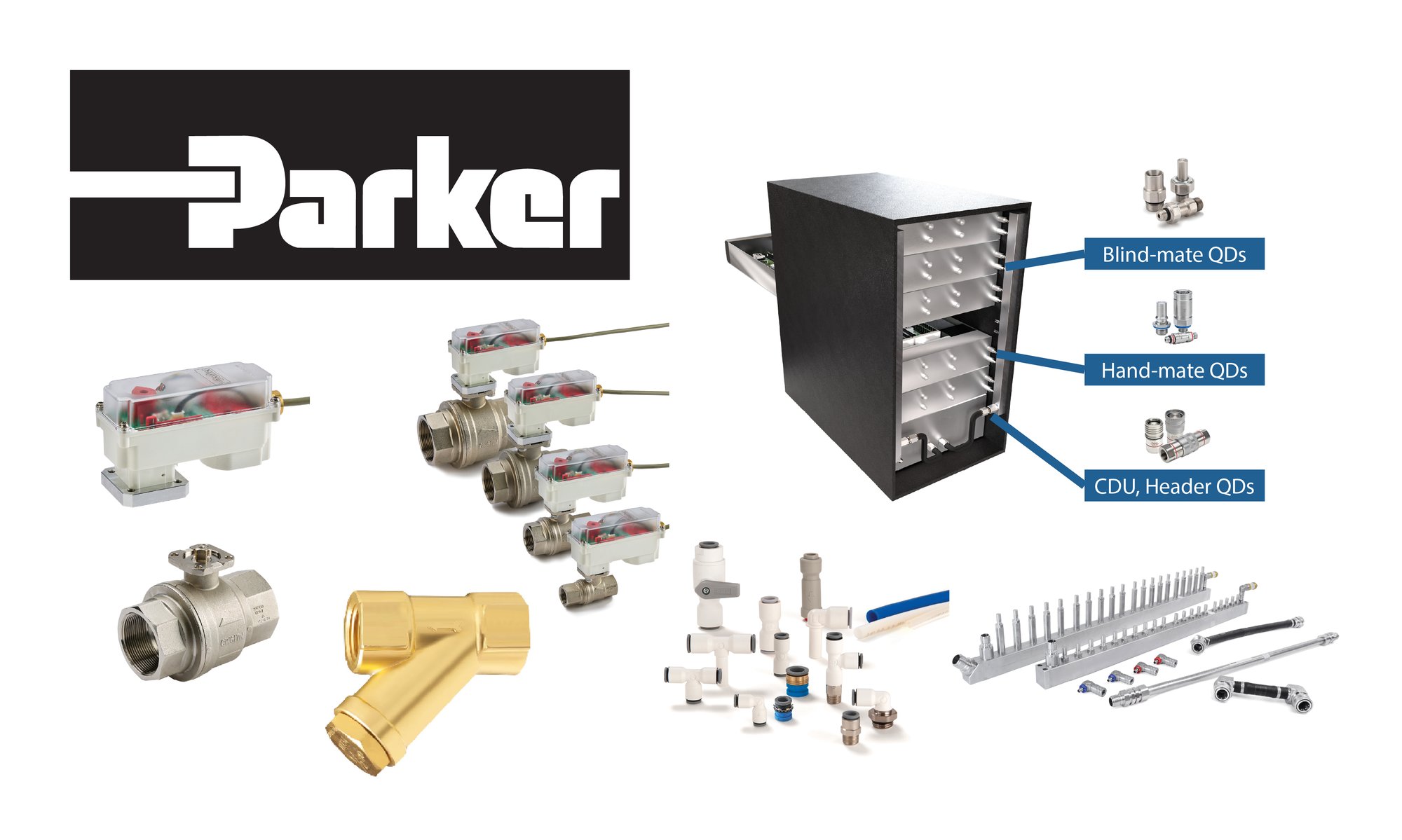

Data Centers - Parker

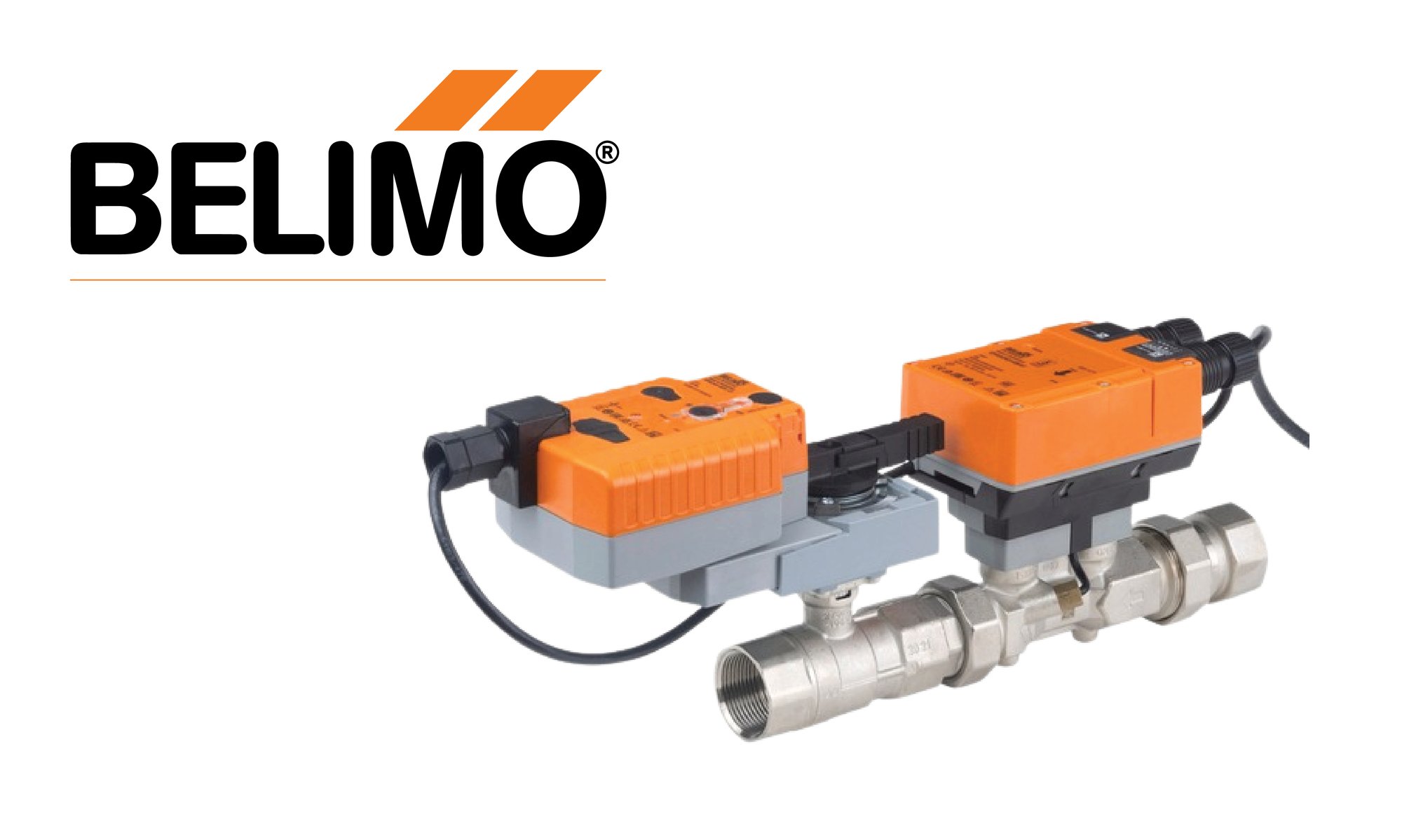

Data Centers - Belimo1

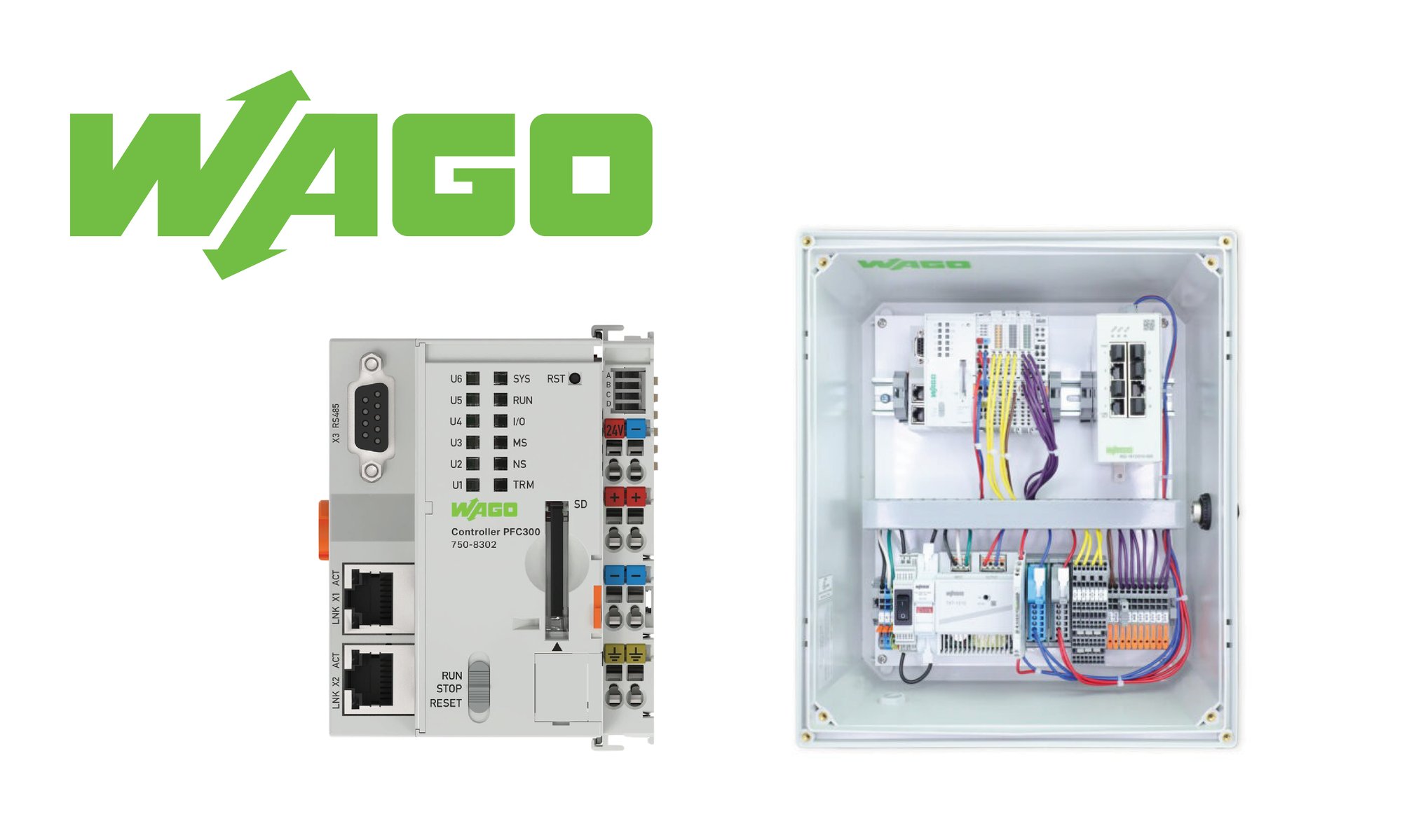

Data Centers - WAGO1

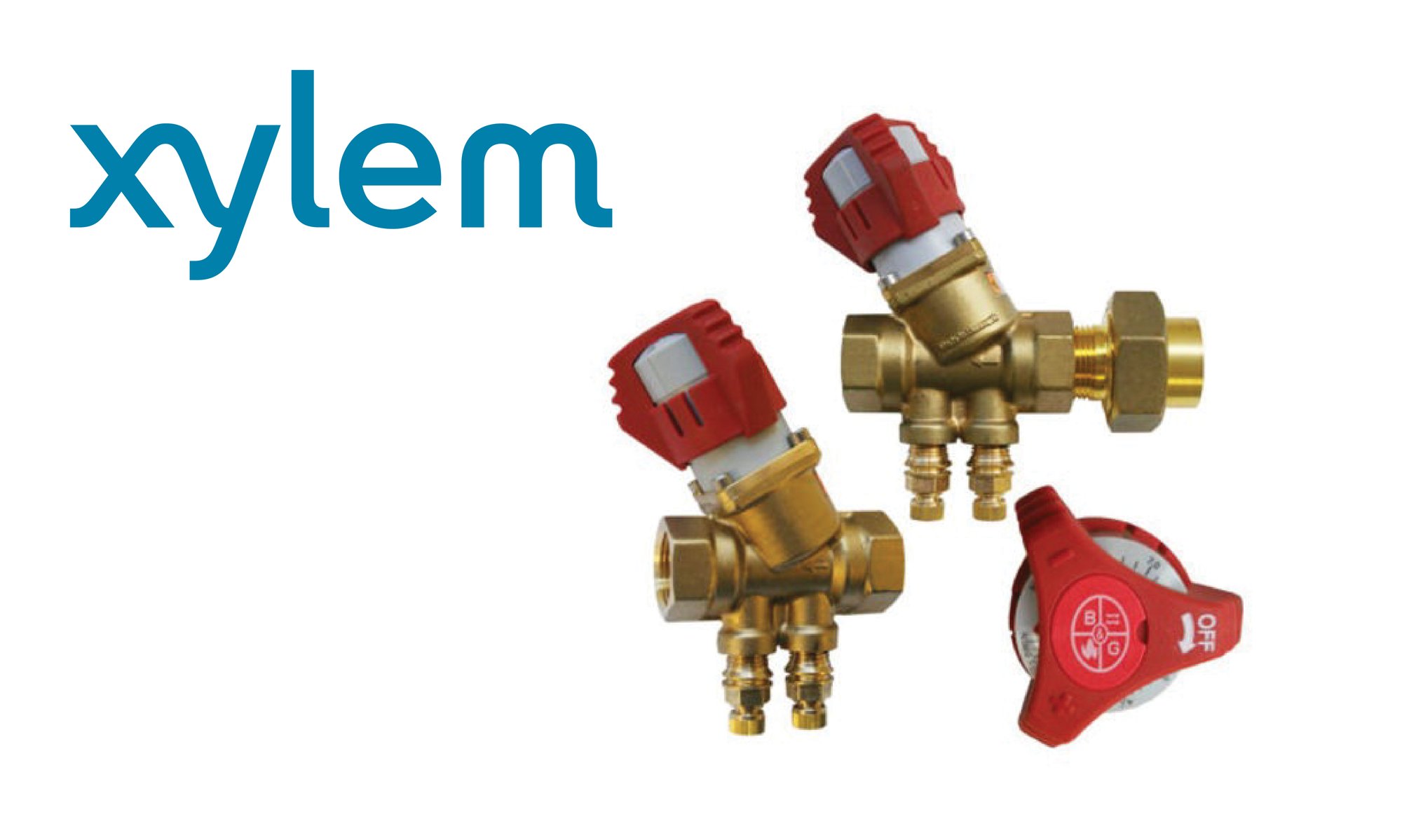

Data Centers - Xylem1
Data Centers-05
Data Centers-08
Data Centers-11
Data Centers-14
Data Centers-06
Data Centers-09
Data Centers-12
Data Centers-15
Data Centers-07
Data Centers-10
Data Centers-13
Data Centers-16

TESTING

Still 1 - Edited-1
Still 4 - Edited

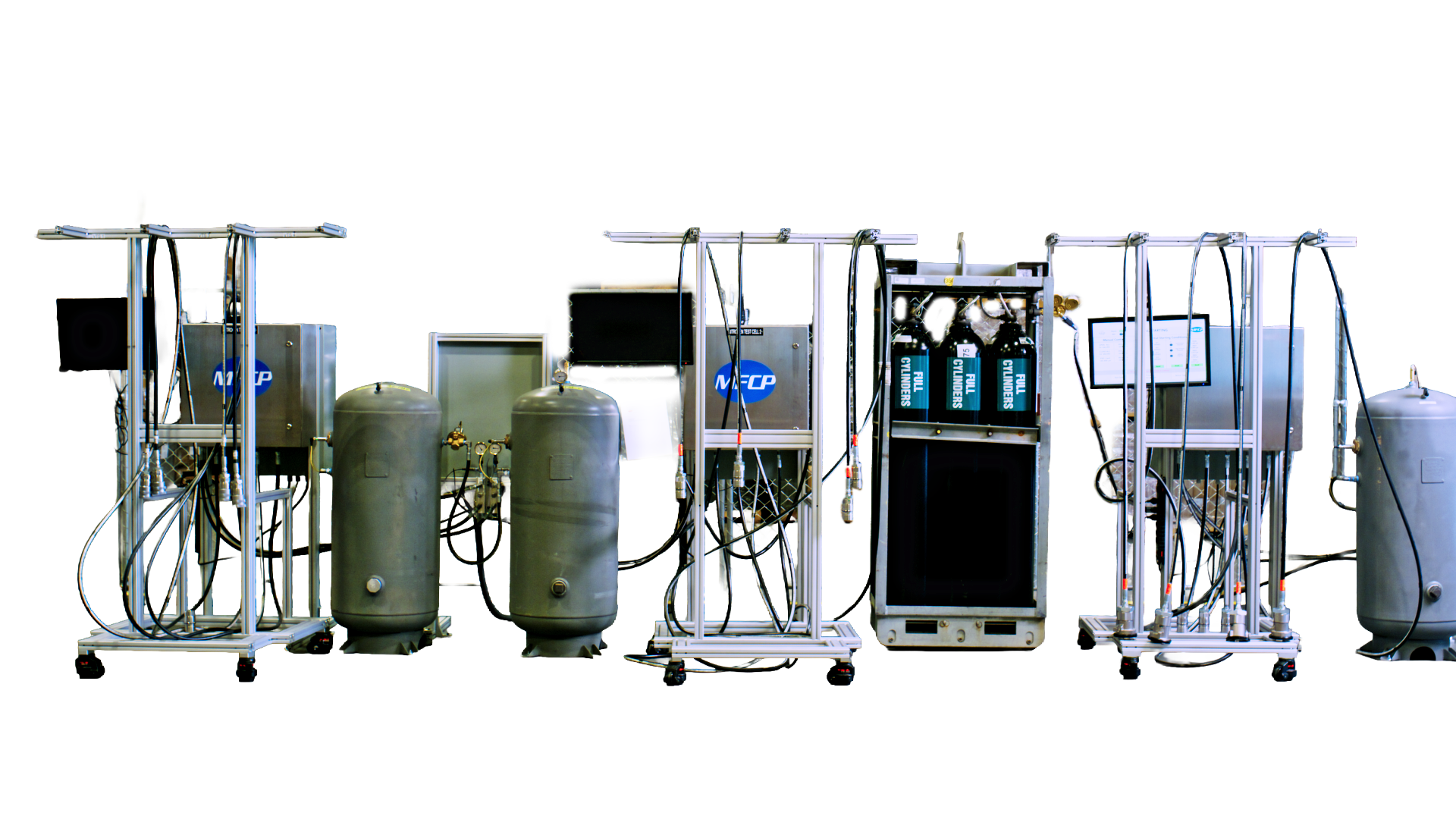

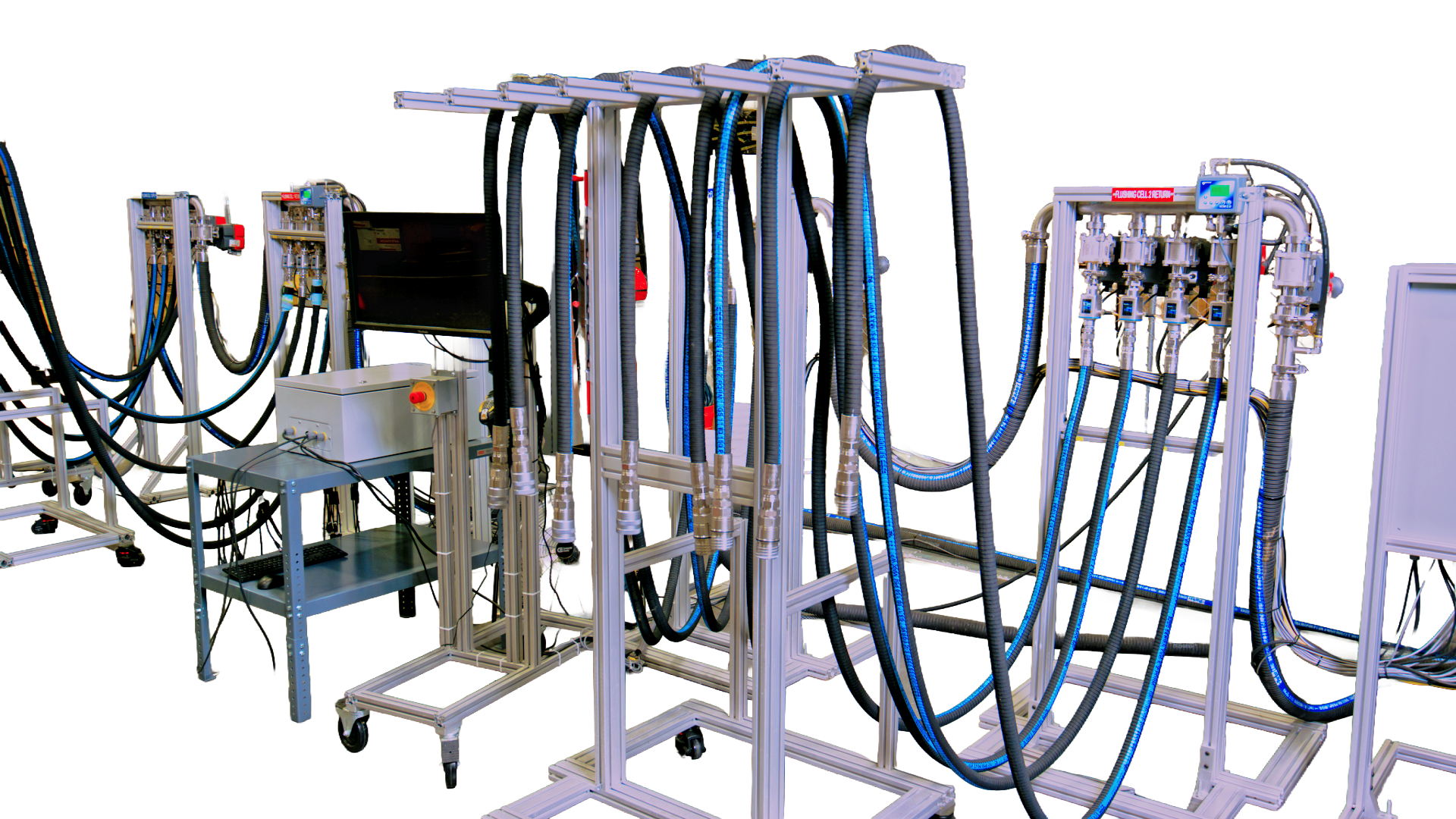

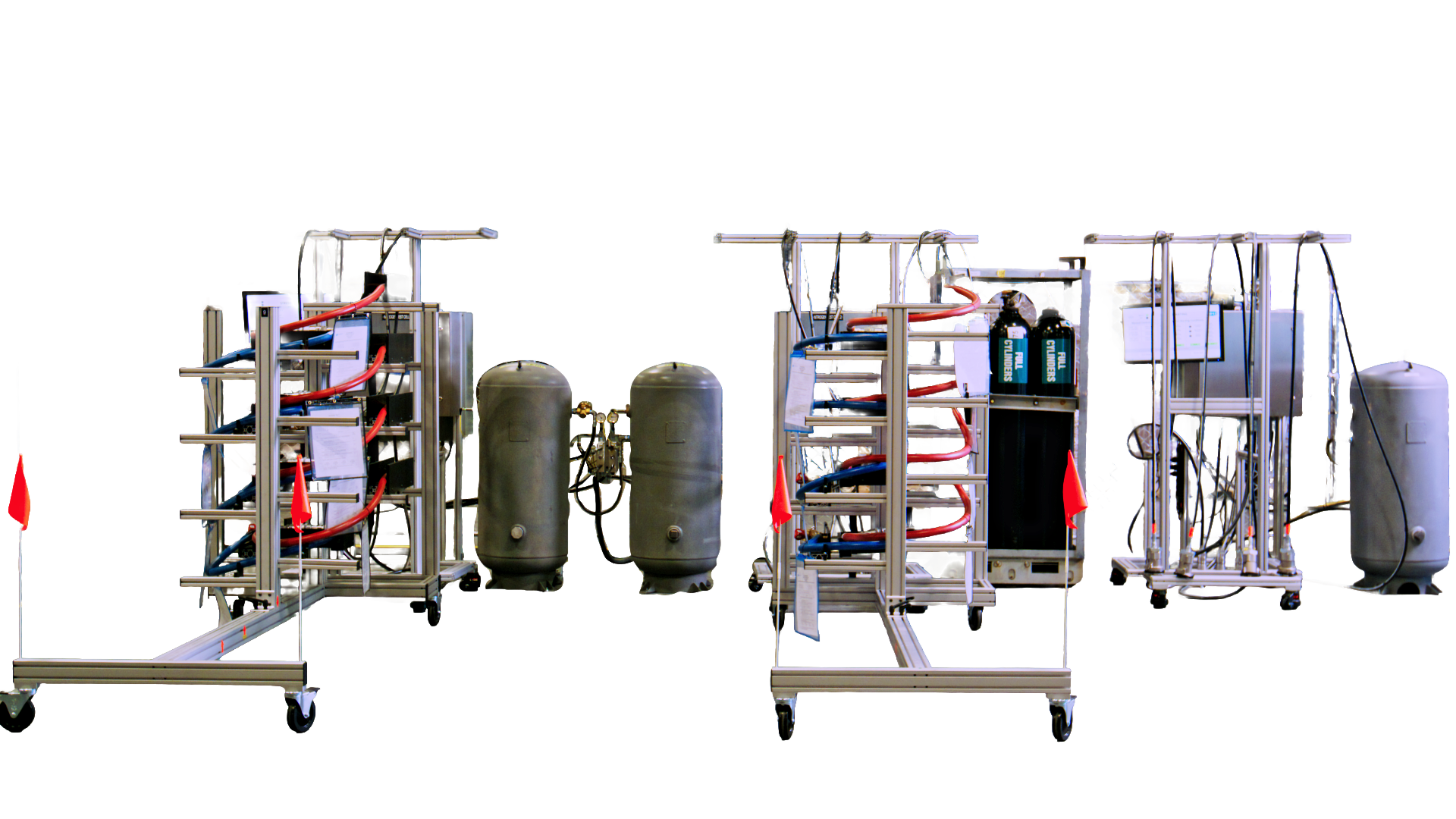

Testing and Validation

MFCP provides comprehensive testing and validation services to ensure valve train assemblies meet the strict reliability, cleanliness, and operational requirements of modern hyperscale data centers. Each assembly is tested and validated before shipment to confirm performance, safety, and system compatibility.

MFCP valve train assemblies undergo rigorous testing and validation to meet the performance, cleanliness, and reliability requirements of hyperscale data center cooling infrastructure.

FLUSH AND CLEANLINESS TESTING

MFCP performs controlled flushing procedures to remove contamination and verify system cleanliness before deployment.

  • Flush media options include glycol or deionized (DI) water

  • Systems are flushed to an ISO 4406 cleanliness level of 19/18/17 or better

  • Inline particle counters monitor contamination levels during the flushing process

  • Typical results exceed requirements, often achieving 10/8/5 cleanliness levels

NITROGEN PRESSURE TESTING

Each valve train assembly undergoes pressure testing to verify mechanical integrity and ensure the system can safely operate under load conditions.

  • Nitrogen pressure testing validates system integrity

  • Assemblies are tested to 1.5× the working pressure

  • Typical test pressure example: 150 psi for 1 minute

NITROGEN LEAK TESTING

MFCP performs precision leak testing to confirm system sealing and eliminate potential fluid loss.

  • Pressure decay leak test using nitrogen

  • 5-minute stabilization period for thermal settling

  • Baseline pressure recorded and monitored over a 10-minute period

  • Pass threshold: 0.0025 mbar·L/sec leak rate based on calculated system volume

ELECTRICAL HARNESS TESTING

Electrical systems are verified during assembly to eliminate potential field failures.

  • Continuity testing on electrical harnesses

  • Validation of actuator feedback switch set points when applicable

  • Electrical functionality verified before actuators are installed

RMC FUNCTIONAL TESTING

MFCP can perform controller validation to verify valve functionality before shipment.

  • Hyperscalers can provide an RMC control script

  • MFCP runs the script to actuate valves within the valve train

  • Confirms communication and proper response to RMC commands

Still 3 - Edited-1
Still 2 - Edited-1

MFCP DATA CENTER SUPPORT CAPABILITIES

Data Centers-1
Flow Control
Energy valves, control valves, flow controllers, meters, and sensors from Parker, Belimo, Xylem, and others
Quick Couplers
Multi-sourced from Parker, CEJN, Safeway, Staubli, CPC, and Danfoss
Server Rack Manifolds
Extruded aluminum and stainless steel designs
Cold Plate Connections
Carstick, standpipe, hose/tubing, and cold plate configurations for direct-to-chip cooling
Thermal Cooling Units
Side, recessed, and top-mount options (Pfannenberg)
Sealing Solutions
Seals for cold plates and rack structures
Sanitary Clamps & Fittings
Tri-clamp fittings for manifold and CDU connections
Custom Hose Assemblies
EPDM peroxide-cured hoses engineered from technical water loops to server racks
Electrical Integration
M12 cordsets, Turck Y-splitters, RMC/CCM connectivity, and leak sensors
