Parker Air Preparation Products | Global FRLs | P31 Mini Coalescing Filter

 Mini-Coalescing-Filter

FEATURES

  • Integral 1/4" ports
  • Removes liquid aerosols and sub-micron particles
  • Oil-free air for critical applications
  • Absorbing activated carbon element removes oil vapors and most hydrocarbons
  • Differential Pressure Indicator (DPI)
  • Robust, lightweight aluminum construction
  • Positive bayonet latch to ensure safe and correct fitting

SYMBOL

mini-coalescing-filter-symbol

Back to Global FRLS Main Page


Part Numbers


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P31FB92DGMN

Poly bowl - manual drain

 1/4" 3.6 (7.5) 10 (150) 136.9 (5.39)  40 (1.58)  40 (1.58)
P31FB92DGBN

Poly bowl - pulse drain

 1/4" 3.6 (7.5) 10 (150) 131.7 (5.19)   40 (1.58)  40 (1.58)
P31FB92DMMN  Metal bowl - manual drain  1/4" 3.6 (7.5) 10 (150) 136.9 (5.39)     40 (1.58)   40 (1.58)
P31FB92DMBN  Metal bowl - pulse drain  1/4" 3.6 (7.5) 10 (150) 131.7 (5.19)   40 (1.58)   40 (1.58)

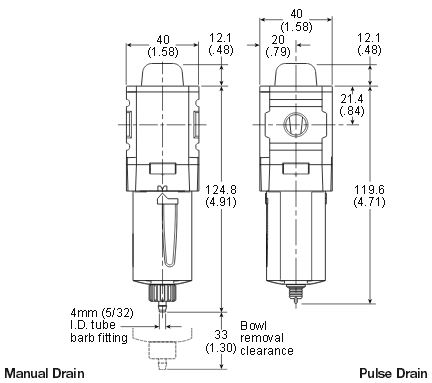

mini-coalescing-filter-dimensions


Service Kits and Mounting Brackets

Part Number Description
P31KB00BGM Plastic bowl / Bowl guard manual drain
P31KB00BMM Metal bowl / w/o sight gauge manual drain
P31KB00BGB Plastic bowl / Bowl guard pulse drain
P31KB00BMB Metal bowl / w/o sight gauge pulse drain
P31KA00ES9 1μ coalescing filter element
P31KA00ESC 0.01μ coalescing filter element
P31KA00ESA Activated carbon adsorber filter element
P31KA00MW C-bracket (fits to body)
P31KA00MT T-bracket with body connector
P31KA00CB Body connector
P31KB00RQ Differential pressure indicator (replacement)

Technical Specifications

Flow Capacity:

1.0 micron coalescing: 5.5 dm3/s (12 SCFM)

0.01 micron coalescing: 3.6 dm3/s (7.5 SCFM)

Activated carbon adsorber: 6 dm3/s (12.7 SCFM)

Operating Temperature: (Metal Bowl)  14°F to 150°F
  (Plastic Bowl) 14°F to 125°F
Max. Supply Pressure: (Metal Bowl) 10 bar (150 psig)*
  (Plastic Bowl) 10 bar (150 psig)
Standard Filtration: 1.0 and 0.01 micron
Adsorber Max. Oil Carryover (ppm w/w): 0.003 @ 70°F
Useful Retention: 0.4 oz
Port Size: 1/4" (BSPP, BSPT, NPT)
Weight: 0.24 lbs (0.11 kg)

* Without pressure indicator (DPI) - max. pressure for metal bowl version is 17 bar (250 psig).
