Coalescing Filter | Parker P32 Series

 Mini-Coalescing-Filter

FEATURES

  • Integral 1/4", 3/8" or 1/2" ports
  • Removes liquid aerosols and sub-micron particles
  • Oil-free air for critical applications
  • Absorbing activated carbon element removes oil vapors and most hydrocarbons
  • Differential Pressure Indicator (DPI)
  • Robust, lightweight aluminum construction
  • Positive bayonet latch to ensure safe and correct fitting

SYMBOL

mini-coalescing-filter-symbol

Back to Global FRLS Main Page


Part Numbers


1/4" Port


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P32FB92DGMN

Poly bowl - 0.01 micron, manual drain

 1/4" 17 (36) 10 (150) 212.3 (8.36) 60 (2.36) 60 (2.36)
P32FB92DGAN

Poly bowl - 0.01 micron, auto drain

 1/4" 17 (36) 10 (150) 206.3 (8.12) 60 (2.36)
60 (2.36)
P32FB92DSMN Metal bowl - 0.01 micron, manual drain  1/4" 17 (36) 17 (250) 212.3 (8.36)   60 (2.36) 60 (2.36)
P32FB92DSAN Metal bowl - 0.01 micron, auto drain  1/4" 17 (36) 17 (250) 206.3 (8.12) 60 (2.36) 60 (2.36)

3/8" Port


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P32FB93DGMN

Poly bowl - 0.01 micron, manual drain

 3/8" 17 (36) 10 (150) 212.3 (8.36) 60 (2.36) 60 (2.36)
P32FB93DGAN

Poly bowl - 0.01 micron, auto drain

 3/8" 17 (36) 10 (150) 206.3 (8.12) 60 (2.36)
60 (2.36)
P32FB93DSMN Metal bowl - 0.01 micron, manual drain  3/8" 17 (36) 17 (250) 212.3 (8.36)   60 (2.36) 60 (2.36)
P32FB93DSAN Metal bowl - 0.01 micron, auto drain  3/8" 17 (36) 17 (250) 206.3 (8.12) 60 (2.36) 60 (2.36)

1/2" Port


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P32FB94DGMN

Poly bowl - 0.01 micron, manual drain

 1/2" 17 (36) 10 (150) 212.3 (8.36) 60 (2.36) 60 (2.36)
P32FB94DGAN

Poly bowl - 0.01 micron, auto drain

 1/2" 17 (36) 10 (150) 206.3 (8.12) 60 (2.36)
60 (2.36)
P32FB94DSMN Metal bowl - 0.01 micron, manual drain  1/2" 17 (36) 17 (250) 212.3 (8.36)   60 (2.36) 60 (2.36)
P32FB94DSAN Metal bowl - 0.01 micron, auto drain  1/2" 17 (36) 17 (250) 206.3 (8.12) 60 (2.36) 60 (2.36)

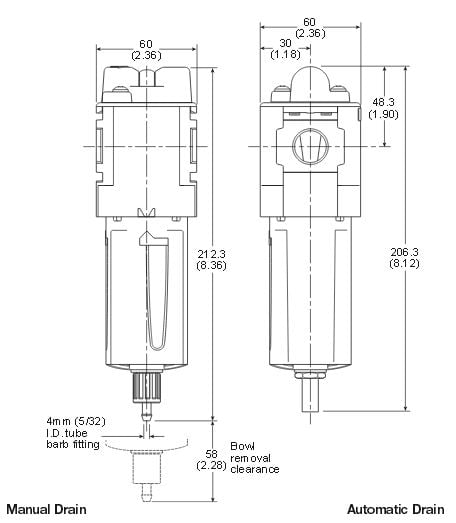

Compact-Coalescing-Filter-Dimensions


Service Kits and Mounting Brackets

Part Number Description
P32KB00BGM Plastic bowl / Bowl guard manual drain
P32KB00BSM Metal bowl / Sight gauge manual drain
P32KA00DA Auto drain
P32KA00ES9 1μ coalescing filter element
P32KA00ESC 0.01μ coalescing filter element
P32KA00ESA Activated carbon adsorber filter element
P32KA00ML L-bracket (fits to body)
P32KA00MB T-bracket (fits to body connector)
P32KA00MT T-bracket with body connector
P32KA00CB Body connector
P32KA00RQ Differential pressure indicator (replacement)

Technical Specifications

Flow Capacity:

1.0 micron coalescing: 25 dm3/s (53 SCFM)

0.01 micron coalescing: 17 dm3/s (36 SCFM)

Activated carbon adsorber: 40 dm3/s (85 SCFM)

Operating Temperature: (Metal Bowl)  -13°F to 150°F
  (Plastic Bowl) -13°F to 125°F
Max. Supply Pressure: (Metal Bowl) 17 bar (250 psig)
  (Plastic Bowl) 10 bar (150 psig)
Standard Filtration: 1.0 and 0.01 micron
Adsorber Max. Oil Carryover (ppm w/w): 0.003 @ 70°F
Useful Retention: 1.7 oz
Port Size: 1/4", 3/8", 1/2" (BSPP, BSPT, NPT)
Weight: 0.71 lbs (0.32 kg)
