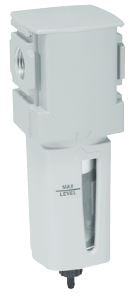

Particulate Filter | Parker P32 Series
FEATURES
SYMBOLS
|
Part Numbers
1/4" Port
Part Number | Description |
Port Size |
Flow |
Max. Bar (psig) |
Height mm (in) |
Width mm (in) |
Depth mm (in) |
P32FB92EGMN |
Poly bowl - manual drain |
1/4" | 24 (50) | 10 (150) | 190.3 (7.49) | 60 (2.36) | 60 (2.36) |
P32FB92EGAN |
Poly bowl - auto drain |
1/4" | 24 (50) | 10 (150) | 184.3 (7.26) | 60 (2.36) | 60 (2.36) |
P32FB92ESMN | Metal bowl - manual drain | 1/4" | 24 (50) | 17 (250) | 190.3 (7.49) | 60 (2.36) | 60 (2.36) |
P32FB92ESAN | Metal bowl - auto drain | 1/4" | 24 (50) | 17 (250) | 184.3 (7.26) | 60 (2.36) |
60 (2.36) |
3/8" Port
Part Number | Description |
Port Size |
Flow |
Max. Bar (psig) |
Height mm (in) |
Width mm (in) |
Depth mm (in) |
P32FB93EGMN |
Poly bowl - manual drain |
3/8" | 37 (78) | 10 (150) | 190.3 (7.49) | 60 (2.36) | 60 (2.36) |
P32FB93EGAN |
Poly bowl - auto drain |
3/8" | 37 (78) | 10 (150) | 184.3 (7.26) | 60 (2.36) | 60 (2.36) |
P32FB93ESMN | Metal bowl - manual drain | 3/8" | 37 (78) | 17 (250) | 190.3 (7.49) | 60 (2.36) | 60 (2.36) |
P32FB93ESAN | Metal bowl - auto drain | 3/8" | 37 (78) | 17 (250) | 184.3 (7.26) | 60 (2.36) |
60 (2.36) |
1/2" Port
Part Number | Description |
Port Size |
Flow |
Max. Bar (psig) |
Height mm (in) |
Width mm (in) |
Depth mm (in) |
P32FB94EGMN |
Poly bowl - manual drain |
1/2" | 39 (82) | 10 (150) | 190.3 (7.49) | 60 (2.36) | 60 (2.36) |
P32FB94EGAN |
Poly bowl - auto drain |
1/2" | 39 (82) | 10 (150) | 184.3 (7.26) | 60 (2.36) | 60 (2.36) |
P32FB94ESMN | Metal bowl - manual drain | 1/2" | 39 (82) | 17 (250) | 190.3 (7.49) | 60 (2.36) | 60 (2.36) |
P32FB94ESAN | Metal bowl - auto drain | 1/2" | 39 (82) | 17 (250) | 184.3 (7.26) | 60 (2.36) |
60 (2.36) |
Service Kits and Mounting Brackets
Part Number | Description |
P32KB00BGM | Plastic bowl / Bowl guard manual drain |
P32KB00BSM | Metal bowl / Sight gauge manual drain |
P32KA00DA | Auto drain |
P32KA00ESE | 5μ particle filter element |
P32KA00ML | L-bracket (fits to body) |
P32KA00MB | T-bracket (fits to body connector) |
P32KA00MT | T-bracket with body connector |
P32KA00CB | Body connector |
Technical Specifications
Flow Capacity: |
1/4": 24 dm3/s (50 SCFM) 3/8": 37 dm3/s (78 SCFM) 1/2": 39 dm3/s (82 SCFM) |
Operating Temperature: | (Metal Bowl) -13°F to 150°F |
(Plastic Bowl) -13°F to 125°F | |
Max. Supply Pressure: | (Metal Bowl) 17 bar (250 psig) |
(Plastic Bowl) 10 bar (150 psig) | |
Standard Filtration: | 5 micron |
Useful Retention: | 1.7 oz |
Port Size: | 1/4", 3/8", 1/2" (BSPP, BSPT, NPT) |
Weight: | 0.62 lbs (0.28 kg) |
WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
