Regulators | Parker P32 Compact Series

 Compact-Regulator

FEATURES

  • Integral 1/4", 3/8" or 1/2" ports
  • Non-rising knob
  • Relieving and non-relieving types
  • Robust, lightweight aluminum construction
  • Secondary pressure ranges 0-2 bar (0-30 psig), 0-4 bar (0-60 psig), 0-8 bar (0-125 psig), 0-17 bar (0-250 psig)
  • Secondary aspiration with balanced poppet provides quick response and accurate pressure regulation

SYMBOLS

mini-regulator-self-relieving-symbol mini-regulator-non-relieving-symbol

Self-relieving regulator

 Non-relieving regulator

Back to Global FRLS Main Page

Part Numbers


Part Number  Description

Port Size

Flow*
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)
P32RB92BNNP

8 bar (125 psig) relieving

  1/4" 70 (148) 20 (300) 136 (5.4)  60 (2.36)  60 (2.36)
P32RB92BNGP

8 bar (125 psig) relieving + gauge

  1/4" 70 (148) 20 (300) 136 (5.4)  60 (2.36)  93 (3.66)
P32RB93BNNP

8 bar (125 psig) relieving

 3/8" 78 (165) 20 (300) 136 (5.4)  60 (2.36)  60 (2.36)
P32RB93BNGP  8 bar (125 psig) relieving + gauge 3/8" 78 (165) 20 (300) 136 (5.4)  60 (2.36) 93 (3.66)
P32RB94BNNP  8 bar (125 psig) relieving 1/2" 78 (165) 20 (300) 136 (5.4)  60 (2.36)  60 (2.36)
P32RB94BNGP  8 bar (125 psig) relieving + gauge 1/2" 78 (165) 20 (300) 136 (5.4)  60 (2.36) 93 (3.66)

 * Flow with 10 bar (145 psig) inlet pressure, 6.3 bar (91.3 psig) set pressure and 1 bar (14.5 psig) pressure drop.

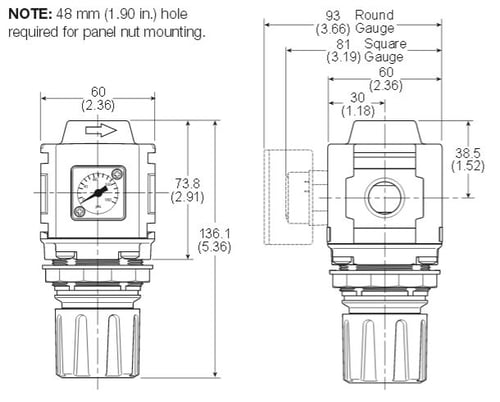

Compact-Regulator-Dimensions


Gauges

Square Flush Mount Gauge

Part Number Pressure Range
K4511SCR04B 0-4 bar
K4511SCR11B 0-11 bar
K4511SCR060 0-60 psig
K4511SCR160 0-160 psig


Square with Adapter Kit

Part Number Pressure Range
P6G-PR10040 0-4 bar
P6G-PR10110 0-11 bar
P6G-PR90060 0-60 psig
P6G-PR90160 0-160 psig


50mm (2") Round 1/4" Center Back Mount

Part Number Pressure Range
K4520N14030 0-2 bar / 0-30 psig
K4520N14060 0-4 bar / 0-60 psig
K4520N14160 0-11 bar / 0-160 psig
K4520N14300 0-20 bar / 0-300 psig

Service Kits and Mounting Brackets

Part Number Description
P32KB00RB Regulator repair kit - relieving
P32KB00RC Regulator repair kit - non-relieving
P32KA00MM Panel mount nut - aluminum
P32KA00MP Panel mount nut - plastic
P32KA00MR Angle bracket (attaches via panel nut)
P32KA00MB T-bracket
P32KA00MT T-bracket with body connector
P32KA00CB Body connector

Technical Specifications

Flow Capacity*:

1/4": 70 dm3/s (148 SCFM)

3/8": 78 dm3/s (165 SCFM)

1/2": 78 dm3/s (165 SCFM)
Operating Temperature: -13°F to 150°F
Max. Supply Pressure: 20 bar (300 psig)
Adjusting Range Pressure:

0-2 bar (0-30 psig)

0-4 bar (0-60 psig)

0-8 bar (0-125 psig)

0-17 bar (0-250 psig)
Port Size: 1/4", 3/8", 1/2" (BSPP, BSPT, NPT)
Gauge Port (2 ea.): 1/4" (BSPP, BSPT, NPT)
Weight: 0.90 lbs (0.41 kg)

* Inlet pressure 10 bar (145 psig). Secondary pressure 6.3 bar (91.3 psig).
