Semi-Precision Piggyback | Parker P32 Compact Series

 Compact-Semi-Precision-Filter-Regulator

FEATURES

  • Integral 1/4", 3/8" or 1/2" ports
  • High-efficiency 5 micron element
  • Excellent water removal efficiency
  • Robust, lightweight aluminum construction
  • Positive bayonet latch to ensure safe & correct fitting
  • Secondary pressure ranges 0-2 bar (0-30 psig), 0-4 bar (0-60 psig), 0-8 bar (0-125 psig), 0-17 bar (0-250 psig)
  • Secondary aspiration with balanced poppet provides quick response and accurate pressure regulation

SYMBOLS

mini-filter-regulator-symbol

Back to Global FRLS Main Page


Part Numbers


Part Number  Description

Port Size

Flow*
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P32EB92EGMPNGP

8 bar (125 psig) relieving - poly bowl - manual drain

 1/4" 35 (75) 10 (150) 261.6 (10.3) 60 (2.36) 93 (3.66)
P32EB92EGAPNGP

8 bar (125 psig) relieving - poly bowl - auto drain

 1/4" 35 (75) 10 (150) 255.6 (10.1)  60 (2.36) 93 (3.66)
P32EB92ESMPNGP

8 bar (125 psig) relieving - metal bowl - manual drain

1/4" 35 (75) 17 (250) 261.6 (10.3) 60 (2.36) 93 (3.66)
P32EB92ESAPNGP 8 bar (125 psig) relieving - metal bowl - auto drain 1/4" 35 (75) 17 (250) 255.6 (10.1) 60 (2.36) 93 (3.66)
P32EB93EGMPNGP 8 bar (125 psig) relieving - poly bowl - manual drain 3/8" 35 (75) 10 (150) 261.6 (10.3) 60 (2.36) 93 (3.66)
P32EB93EGAPNGP 8 bar (125 psig) relieving - poly bowl - auto drain 3/8" 35 (75) 10 (150) 255.6 (10.1) 60 (2.36) 93 (3.66)
P32EB93ESMPNGP 8 bar (125 psig) relieving - metal bowl - manual drain 3/8" 35 (75) 17 (250) 261.6 (10.3) 60 (2.36) 93 (3.66)
P32EB93ESAPNGP 8 bar (125 psig) relieving - metal bowl - auto drain 3/8" 35 (75) 17 (250) 255.6 (10.1) 60 (2.36) 93 (3.66)
P32EB94EGMPNGP 8 bar (125 psig) relieving - poly bowl - manual drain 1/2" 35 (75) 10 (150) 261.6 (10.3) 60 (2.36) 93 (3.66)
P32EB94EGAPNGP 8 bar (125 psig) relieving - poly bowl - auto drain 1/2" 35 (75) 10 (150) 255.6 (10.1) 60 (2.36) 93 (3.66)
P32EB94ESMPNGP 8 bar (125 psig) relieving - metal bowl - manual drain 1/2" 35 (75) 17 (250) 261.6 (10.3) 60 (2.36) 93 (3.66)
P32EB94ESAPNGP 8 bar (125 psig) relieving - metal bowl - auto drain 1/2" 35 (75) 17 (250) 255.6 (10.1) 60 (2.36) 93 (3.66)

 * Flow with 10 bar (145 psig) inlet pressure, 6.3 bar (91.3 psig) set pressure and 1 bar (14.5 psig) pressure drop.

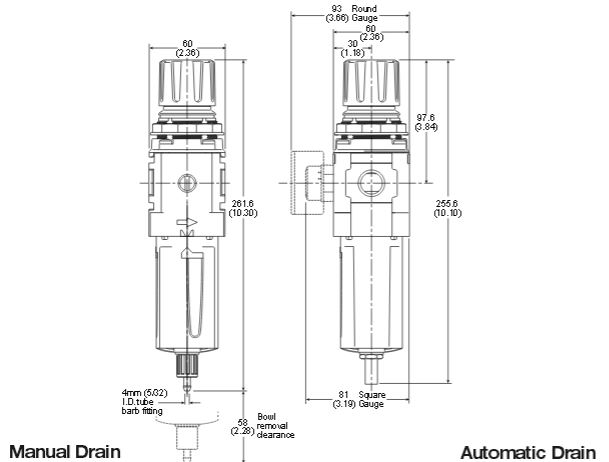

compact-semi-precision-filter-regulator-dimensions


Gauges

50mm (2") Round 1/4" Center Back Mount

Part Number Pressure Range
K4520N14030 0-2 bar / 0-30 psig
K4520N14060 0-4 bar / 0-60 psig
K4520N14160 0-11 bar / 0-160 psig
K4520N14300 0-20 bar / 0-300 psig

Service Kits and Mounting Brackets

Part Number Description
P32KB00BGM Plastic bowl / Bowl guard manual drain
P32KB00BSM Metal bowl / Sight gauge manual drain
P32KA00DA Auto drain
P32KA00ESE 5μ particle filter element
P32KB00RB Regulator repair kit - relieving
P32KB00RC Regulator repair kit - non-relieving
P32KA00MM Panel mount nut - aluminum
P32KA00MP Panel mount nut - plastic
P32KB00MR Angle bracket (attaches via panel nut)
P32KA00MT T-bracket with body connector
P32KA00MB T-bracket (fits to body connector)
P32KA00CB Body connector

Technical Specifications

Flow Capacity*:

1/4": 35 dm3/s (75 SCFM)

3/8": 35 dm3/s (75 SCFM)

1/2": 35 dm3/s (75 SCFM)

Operating Temperature:

Plastic bowl: -13°F to 125°F

Metal bowl:   -13°F to 150°F

Max. Supply Pressure:

Plastic bowl: 10 bar (150 psig)

Metal bowl:   17 bar (250 psig)

Standard Filtration:

5 micron

Useful Retention:

1.7 oz

Adjusting Range Pressure:

0-2 bar (30 psig)

0-4 bar (60 psig)

0-8 bar (125 psig)

0-17 bar (250 psig)

Port Size: 1/4", 3/8", 1/2" (BSPP, BSPT, NPT)
Gauge Port (2 ea.): 1/4" (BSPP, BSPT, NPT)
Weight: 1.17 lbs (0.53 kg)

* Inlet pressure 10 bar (145 psig). Secondary pressure 6.3 bar (91.3 psig).




Warning Triangle WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
