FRL Combinations | Parker P32 Series

 P31-Filter-Regulator-Lubricator

FEATURES

  • 1/4", 3/8" or 1/2" ports
  • 5 micron element
  • 8 bar (116 psig) regulator + gauge
  • Wall mounting brackets

SYMBOLS

p31-filter-regulator-lubricator-symbol

Back to Global FRLS Main Page


Part Numbers


Part Numbers Description Port Size Flow Weight
P32CB92GEMNGLNW Poly bowl - manual drain 1/4" 20 dm3/s (42 SCFM) 2.84 lbs (1.29 kg)
P32CB92GEANGLNW Poly bowl - auto drain 1/4" 20 dm3/s (42 SCFM) 2.84 lbs (1.29 kg)
P32CB93GEMNGLNW Poly bowl - manual drain 3/8" 32 dm3/s (68 SCFM) 2.84 lbs (1.29 kg)
P32CB93GEANGLNW Poly bowl - auto drain 3/8" 32 dm3/s (68 SCFM) 2.84 lbs (1.29 kg)
P32CB94GEMNGLNW Poly bowl - manual drain 1/2" 40 dm3/s (85 SCFM) 2.84 lbs (1.29 kg)
P32CB94GEANGLNW Poly bowl - auto drain 1/2" 40 dm3/s (85 SCFM) 2.84 lbs (1.29 kg)

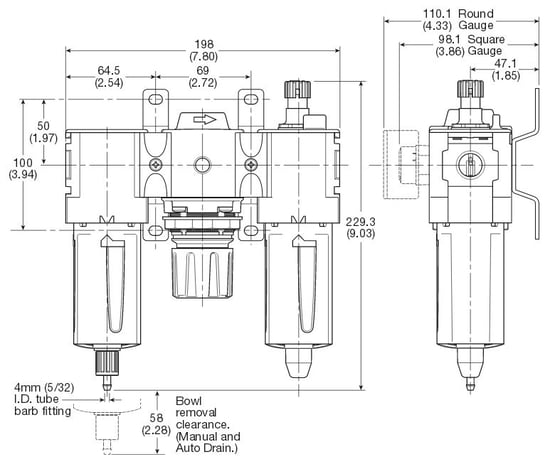

p32-filter-regulator-lubricator-dimensions
