Filter/Regulator + Lubricator Popular Combinations | Parker P32 Series

 Compact-FilterRegulator-Lubricator

FEATURES

  • 1/4", 3/8" or 1/2" ports
  • 5 micron element
  • 8 bar (116 psig) regulator + gauge
  • Wall mounting brackets

SYMBOLS

p31-filter-regulator-lubricator-symbol

Back to Global FRLs Main Page


Part Numbers


Part Numbers Description Port Size Flow Weight
P32CA92GEMNGLNW Poly bowl - manual drain 1/4" 22 dm3/s (45 SCFM) 2.27 lbs (1.03 kg)
P32CA92GEBNGLNW Poly bowl - pulse drain 1/4" 22 dm3/s (45 SCFM) 2.27 lbs (1.03 kg)
P32CA93GEMNGLNW Poly bowl - manual drain 3/8" 33 dm3/s (70 SCFM) 2.27 lbs (1.03 kg)
P32CA93GEBNGLNW Poly bowl - pulse drain 3/8" 33 dm3/s (70 SCFM) 2.27 lbs (1.03 kg)
P32CA94GEMNGLNW Poly bowl - manual drain 1/2" 44 dm3/s (90 SCFM) 2.27 lbs (1.03 kg)
P32CA94GEBNGLNW Poly bowl - pulse drain 1/2" 44 dm3/s (90 SCFM) 2.27 lbs (1.03 kg)

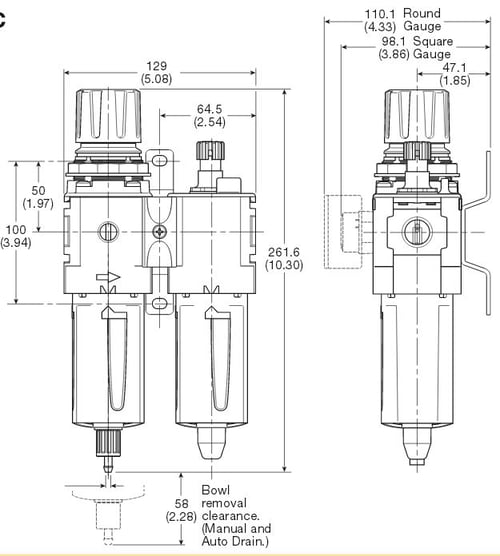

compact-filterregulator-lubricator-dimensions
