Parker Air Preparation Products | Global FRLs | P32P Proportional Regulator

 p32p-proportional-regulator

FEATURES

  • Very fast response times
  • Accurate output pressure
  • Micro parameter settings
  • Selectable I/O parameters
  • Quick, full flow exhaust
  • LED display for output pressure
  • No air consumption in steady state
  • Protection to IP65
  • Flows to 57 dm3/s (120 scfm)

Back to Global FRLS Main Page

Back to Proportional Regulators Main Page


Part Numbers


Part Number  Description

Port Size

Flow*
Dm3/s (scfm)

Max. Operating Pressure

(psig)

P32PA14AZ2V*1A

2 bar (29 psig) compact proportional regulator, BSPP

 1/2" 57 (120) 3 (43.5)
P32PA14AD2V*1A

10 bar (145 psig) compact proportional regulator, BSPP

 1/2" 57 (120) 10.5 (152)
P32PA24AZ2V*1A

2 bar (29 psig) compact proportional regulator, BSPT

1/2" 57 (120) 3 (43.5)
P32PA24AD2V*1A 10 bar (145 psig) compact proportional regulator, BSPT 1/2" 57 (120) 10.5 (152)
P32PA94AZ2V*1A 2 bar (29 psig) compact proportional regulator, NPT
1/2" 57 (120) 3 (43.5)
P32PA94AD2V*1A 10 bar (145 psig) compact proportional regulator, NPT 1/2" 57 (120) 10.5 (152)

  * Output Signal. D= Digital PNP, P= PNP or 0-10V, N= NPN or 0-10V, M= 4-20mA fixed.

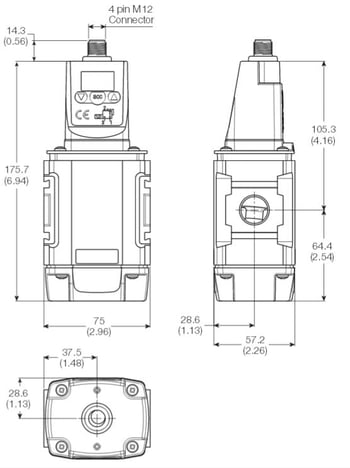

p32p-proportional-regulator-dimensions


Mounting Brackets and Accessories

Part Number Description
P3KKA00ML L-Bracket mounting kit
P3KKA00MC Foot bracket mounting kit
CB-M12-4P-2M 2 mtr. cable with moulded straight M12x1 connector

Technical Specifications

Flow Capacity: 57 dm3/s (120 SCFM)
Temperature Range:
32°F to 122°F
Pressure Control Range:

0-2 bar (0-29 psig)

0-7 bar (0-101.5 psig)

0-10 bar (0-145 psig)

Port Size: 1/2" (BSPP, BSPT, NPT)
Supply Voltage:
24 VDC ± 10%
Power Consumption: Max. 1.1W with unloaded signal outputs
Weight: 1.42 lbs (0.65 kg)
