Popular Piggyback + Lubricator Combinations | Parker P33 Series

 Standard-FilterRegulator-Lubricator

FEATURES

  • 1/2" or 3/4" ports
  • 5 micron element
  • 8 bar (116 psig) regulator + gauge
  • Wall mounting brackets

SYMBOLS

p31-filter-regulator-lubricator-symbol

Back to Global FRLs Main Page


Part Numbers


Part Numbers Description Port Size Flow Weight
P33CA94GEMNGLNW Poly bowl - manual drain 1/2" 52 dm3/s (110 SCFM) 3.33 lbs (1.51 kg)
P33CA94GEANGLNW Poly bowl - pulse drain 1/2" 52 dm3/s (110 SCFM) 3.33 lbs (1.51 kg)
P33CA96GEMNGLNW Poly bowl - manual drain 3/4" 71 dm3/s (150 SCFM) 3.33 lbs (1.51 kg)
P33CA96GEANGLNW Poly bowl - pulse drain 3/4" 71 dm3/s (150 SCFM) 3.33 lbs (1.51 kg)

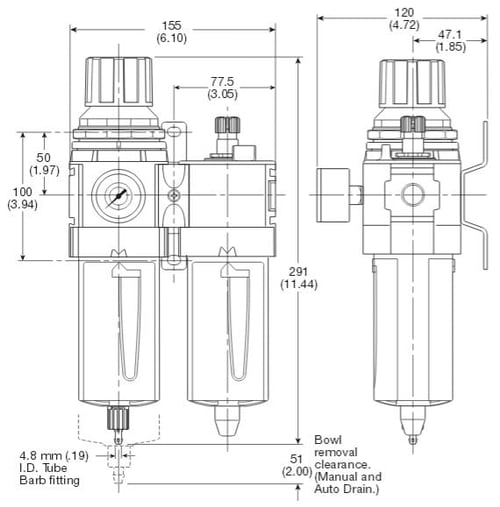

standard-filterregulator-lubricator-dimensions
