Coalescing Filters | Parker P33 Series

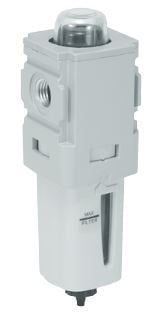

 Mini-Coalescing-Filter

FEATURES

  • Integral 1/2" or 3/4" ports
  • Removes liquid aerosols and sub-micron particles
  • Oil-free air for critical applications
  • Absorbing activated carbon element removes oil vapors and most hydrocarbons
  • Differential Pressure Indicator (DPI)
  • Robust, lightweight aluminum construction
  • Positive bayonet latch to ensure safe and correct fitting

SYMBOL

mini-coalescing-filter-symbol

Back to Global FRLS Main Page


Part Numbers


1/2" Port


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P33FA94DGMN

Poly bowl - 0.01 micron, manual drain

 1/2" 32 (68) 10 (150) 235 (9.25) 73 (2.87) 73 (2.87)
P33FA94DGAN

Poly bowl - 0.01 micron, auto drain

 1/2" 32 (68) 10 (150) 229 (9.02) 73 (2.87) 73 (2.87)
P33FA94DSMN Metal bowl - 0.01 micron manual drain  1/2" 32 (68) 17 (250) 235 (9.25) 73 (2.87) 73 (2.87)
P33FA94DSAN Metal bowl - 0.01 micron, auto drain  1/2" 32 (68) 17 (250) 229 (9.02) 73 (2.87) 73 (2.87)

3/4" Port


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P33FA96DGMN

Poly bowl - 0.01 micron, manual drain

 3/4" 32 (68) 10 (150) 235 (9.25) 60 (2.36) 73 (2.87)
P33FA96DGAN

Poly bowl - 0.01 micron, auto drain

  3/4" 32 (68) 10 (150) 229 (9.02) 60 (2.36)
73 (2.87)
P33FA96DSMN Metal bowl - 0.01 micron, manual drain   3/4" 32 (68) 17 (250) 235 (9.25)  60 (2.36) 73 (2.87)
P33FA96DSAN Metal bowl - 0.01 micron, auto drain   3/4" 32 (68) 17 (250) 229 (9.02) 60 (2.36) 73 (2.87)

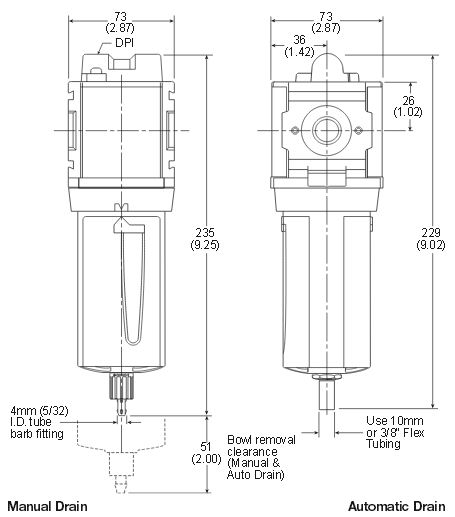

Standard-Coalescing-Filter-Dimensions


Service Kits and Mounting Brackets

Part Number Description
P33KA00BGM Plastic bowl / Bowl guard manual drain
P33KA00BSM Metal bowl / Sight gauge manual drain
P32KA00DA Auto drain
P33KA00ES9 1μ coalescing filter element
P33KA00ESC 0.01μ coalescing filter element
P33KA00ESA Activated carbon adsorber filter element
P33KA00ML L-bracket (fits to body)
P32KA00MB T-bracket (fits to body connector)
P32KA00MT T-bracket with body connector
P32KA00CB Body connector
P32KA00RQ Differential pressure indicator (replacement)

Technical Specifications

Flow Capacity:

1.0 micron coalescing: 32 dm3/s (68 SCFM)

0.01 micron coalescing: 20 dm3/s (42 SCFM)

Activated carbon adsorber: 34 dm3/s (72 SCFM)

Operating Temperature: (Metal Bowl)  -13°F to 150°F
  (Plastic Bowl) -13°F to 125°F
Max. Supply Pressure: (Metal Bowl) 17 bar (250 psig)
  (Plastic Bowl) 10 bar (150 psig)
Standard Filtration: 1.0 and 0.01 micron
Adsorber Max. Oil Carryover (ppm w/w): 0.003 @ 70°F
Useful Retention: 2.8 oz
Port Size: 1/2", 3/4" (BSPP, BSPT, NPT)
Weight: 1.10 lbs (0.50 kg)
