Piggybacks (Filter/Regulator Combos) | Parker P33 Series

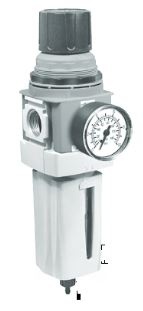

 Standard-Filter-Regulator

FEATURES

  • Integral 1/2" or 3/4" ports
  • High-efficiency 5 micron element
  • Excellent water removal efficiency
  • Robust, lightweight aluminum construction
  • Positive bayonet latch to ensure safe & correct fitting
  • Secondary pressure ranges 0-2 bar (0-30 psig), 0-4 bar (0-60 psig), 0-8 bar (0-125 psig), 0-17 bar (0-250 psig)
  • Secondary aspiration with balanced poppet provides quick response and accurate pressure regulation

SYMBOLS

mini-filter-regulator-symbol

Back to Global FRLS Main Page


Part Numbers


Part Number  Description

Port Size

Flow*
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P33EA94EGMBNGP

8 bar (125 psig) relieving - poly bowl - manual drain

 1/2" 99 (210) 10 (150) 291 (11.44) 73 (2.87) 108 (4.27)
P33EA94EGABNGP

8 bar (125 psig) relieving - poly bowl - auto drain

 1/2" 99 (210) 10 (150) 285 (11.22)  73 (2.87) 108 (4.27)
P33EA94ESMBNGP

8 bar (125 psig) relieving - metal bowl - manual drain

1/2" 99 (210) 17 (250) 291 (11.44) 73 (2.87) 108 (4.27)
P33EA94ESABNGP 8 bar (125 psig) relieving - metal bowl - auto drain 1/2" 99 (210) 17 (250) 285 (11.22) 73 (2.87) 108 (4.27)
P33EA96EGMBNGP 8 bar (125 psig) relieving - poly bowl - manual drain 3/4" 108 (230) 10 (150) 291 (11.44) 73 (2.87) 108 (4.27)
P33EA96EGABNGP 8 bar (125 psig) relieving - poly bowl - auto drain 3/4" 108 (230) 10 (150) 285 (11.22) 73 (2.87) 108 (4.27)
P33EA96ESMBNGP 8 bar (125 psig) relieving - metal bowl - manual drain 3/4" 108 (230) 17 (250) 291 (11.44) 73 (2.87) 108 (4.27)
P33EA96ESABNGP 8 bar (125 psig) relieving - metal bowl - auto drain 3/4" 108 (230) 17 (250) 285 (11.22) 73 (2.87) 108 (4.27)

 * Flow with 10 bar (145 psig) inlet pressure, 6.3 bar (91.3 psig) set pressure and 1 bar (14.5 psig) pressure drop.

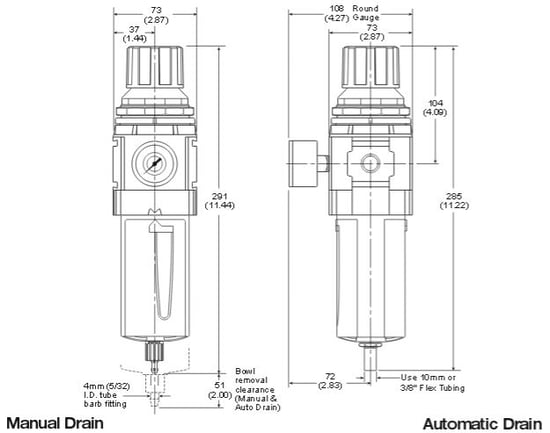

standard-filter-regulator-dimensions


Gauges

50mm (2") Round 1/4" Center Back Mount

Part Number Pressure Range
K4520N14030 0-2 bar / 0-30 psig
K4520N14060 0-4 bar / 0-60 psig
K4520N14160 0-11 bar / 0-160 psig
K4520N14300 0-20 bar / 0-300 psig

Service Kits and Mounting Brackets

Part Number Description
P33KA00BGM Plastic bowl / Bowl guard manual drain
P33KA00BSM Metal bowl / Sight gauge manual drain
P33KA00DA Auto drain
P33KA00ESE 5μ particle filter element
P33KA00RB Regulator repair kit - relieving
P33KA00RC Regulator repair kit - non-relieving
P33KA00MM Panel mount nut - aluminum
P33KA00MP Panel mount nut - plastic
P33KA00MR Angle bracket (attaches via panel nut)
P33KA00MT T-bracket with body connector
P33KA00MB T-bracket (fits to body connector)
P33KA00CB Body connector

Technical Specifications

Flow Capacity*:

1/2": 99 dm3/s (210 SCFM)

3/4": 108 dm3/s (230 SCFM)

Operating Temperature:

Plastic bowl: -13°F to 125°F

Metal bowl:   -13°F to 150°F

Max. Supply Pressure:

Plastic bowl: 10 bar (150 psig)

Metal bowl:   17 bar (250 psig)

Standard Filtration:

5 micron

Useful Retention:

2.8 oz

Adjusting Range Pressure:

0-2 bar (30 psig)

0-4 bar (60 psig)

0-8 bar (125 psig)

0-17 bar (250 psig)

Port Size: 1/2", 3/4" (BSPP, BSPT, NPT)
Gauge Port (2 ea.): 1/4" (BSPP, BSPT, NPT)
Weight: 1.87 lbs (0.85 kg)

* Inlet pressure 10 bar (145 psig). Secondary pressure 6.3 bar (91.3 psig).
