Lubricators | Parker P33 Series

 Standard-Lubricator

FEATURES

  • Integral 1/2" or 3/4" ports
  • Robust, lightweight aluminum construction
  • Proportional oil delivery over a wide range of air flows
  • Fingertip ratchet control for precise precise oil drip rate adjustment
  • Fill from top under system pressure

SYMBOLS

lubricator-symbol
Lubricator with drain

Back to Global FRLS Main Page


Part Numbers


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P33LA94LGNN

Poly bowl - no drain

1/2" 52 (110) 10 (150) 234 (9.21)  73 (2.9)  73 (2.9)
P33LA94LSNN  Metal bowl - no drain
1/2" 52 (110) 17 (250) 234 (9.21)
  73 (2.9)
 73 (2.9)
P33LA96LGNN  Poly bowl - no drain 3/4" 71 (150) 10 (150) 234 (9.21) 73 (2.9) 73 (2.9)
P33LA96LSNN  Metal bowl - no drain 3/4" 71 (150) 17 (250) 234 (9.21) 73 (2.9) 73 (2.9)

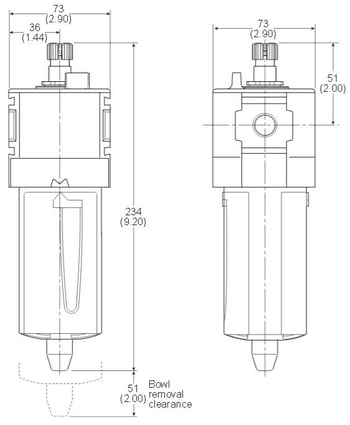

Standard-Lubricator-Dimensions


Service Kits and Mounting Brackets

Part Number Description
P33KA00BGN Plastic bowl / Bowl guard no drain
P33KA00BMN Metal bowl / w/o sight gauge no drain
P33KA00BSN Metal bowl / Sight gauge no drain
P33KA00PG Drip control assembly
P33KA00PL Fill plug
P33KA00ML L-bracket (fits to body)
P32KA00MB T-bracket (fits to body connector)
P32KA00MT T-bracket with body connector
P32KA00CB Body connector



Suggested Lubricant

F442 Oil - Petroleum-based oil of 100 to 200 SUS viscosity at 100°F and an aniline point greater than 200°F

Do not use oils with additives, compounded oils containing solvents, graphite, detergents or synthetic oils.

Technical Specifications

Flow Capacity:

1/2": 52 dm3/s (110 SCFM)

3/4": 71 dm3/s (250 SCFM)

Operating Temperature: (Metal Bowl)  14°F to 150°F
  (Plastic Bowl) 14°F to 125°F
Max. Supply Pressure: (Metal Bowl) 17 bar (250 psig)
  (Plastic Bowl) 10 bar (150 psig)
Useful Retention: 6.1 oz
Port Size: 1/2", 3/4" (BSPP, BSPT, NPT)
Weight: 1.04 lbs (0.47 kg)
