Particulate Filters | Parker P33 Series

 Standard-Particulate-Filter

FEATURES

  • Integral 1/2" or 3/4" ports
  • High efficiency 5 micron element
  • Excellent water removal efficiency
  • Robust, lightweight aluminum construction
  • Positive bayonet latch to ensure safe and correct fitting

SYMBOLS

P31-Mini-Particulate-Filter-Manual-Drain P31-Mini-Particulate-Filter-Pulse-Drain
Manual Drain Auto Drain

Back to Global FRLS Main Page


Part Numbers


1/2" Port


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P33FA94EGMN

Poly bowl - manual drain

 1/2" 40 (85) 10 (150) 213 (8.39)  73 (2.87) 73 (2.87)
P33FA94EGAN

Poly bowl - auto drain

 1/2" 40 (85) 10 (150) 207 (8.15)  73 (2.87) 73 (2.87)
P33FA94ESMN  Metal bowl - manual drain  1/2" 40 (85) 17 (250) 213 (8.39)    73 (2.87)
73 (2.87)
P33FA94ESAN  Metal bowl - auto drain 1/2" 40 (85) 17 (250) 207 (8.15)  73 (2.87)
73 (2.87)

3/4" Port


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P33FA96EGMN

Poly bowl - manual drain

 3/4" 48 (102) 10 (150) 213 (8.39) 73 (2.87) 73 (2.87)
P33FA96EGAN

Poly bowl - auto drain

 3/4" 48 (102) 10 (150) 207 (8.15) 73 (2.87) 73 (2.87)
P33FA96ESMN  Metal bowl - manual drain  3/4" 48 (102) 17 (250) 213 (8.39)   73 (2.87) 73 (2.87)
P33FA96ESAN  Metal bowl - auto drain  3/4" 48 (102) 17 (250) 207 (8.15)  73 (2.87)
73 (2.87)

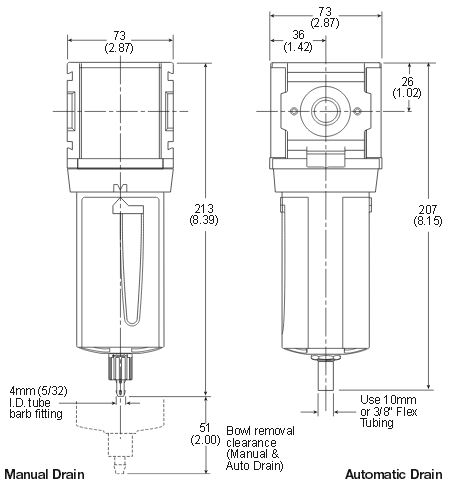

Standard-Particulate-Filter-Dimensions


Service Kits and Mounting Brackets

Part Number Description
P33KA00BGM Plastic bowl / Bowl guard manual drain
P33KA00BSM Metal bowl / Sight gauge manual drain
P33KA00DA Auto drain
P33KA00ESE 5μ particle filter element
P33KA00ML L-bracket (fits to body)
P33KA00MB T-bracket (fits to body connector)
P33KA00MT T-bracket with body connector
P33KA00CB Body connector

Technical Specifications

Flow Capacity:

1/2": 40 dm3/s (85 SCFM)

3/4": 48 dm3/s (102 SCFM)

Operating Temperature: (Metal Bowl)  -13°F to 150°F
  (Plastic Bowl) -13°F to 125°F
Max. Supply Pressure: (Metal Bowl) 17 bar (250 psig)
  (Plastic Bowl) 10 bar (150 psig)
Standard Filtration: 5 micron
Useful Retention: 2.8 oz
Port Size: 1/2", 3/4" (BSPP, BSPT, NPT)
Weight: 1.01 lbs (0.46 kg)
