Coalescing Filters | Parker P3Y Series

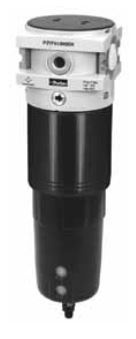

 P3Y-Adsorber-Filter

FEATURES

  • Integral 3/4" or 1" ports
  • Extended high-efficiency filter element provides greater filtration surface area
  • Removes liquid aerosols and sub-micron particles
  • Oil-free air for critical applications

Back to Global FRLS Main Page


Part Numbers


Part Number  Description

Port Size

 Flow dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P3YFA16DSCN

Combined manual / semi-auto drain

 3/4"  49  (104)
17.5 (254) 340 (13.4) 90 (3.5) 94 (3.7)
P3YFA16DSAN

Auto drain

 3/4" 49  (104)  17.5 (254) 340 (13.4) 90 (3.5) 94 (3.7)
P3YFA18DSCN Combined manual / semi-auto drain  1"  49  (104) 17.5 (254) 340 (13.4) 90 (3.5) 94 (3.7)
P3YFA18DSAN  Auto drain 1"  49  (104) 17.5 (254) 340 (13.4)  90 (3.5)
94 (3.7)


p3y-coalescing-filter-dimensions


Service Kits

Part Number Description
P3YKA00ESC 0.01 micron coalescing element kit
P3YKA00RQ Differential pressure indicator kit
P3YKA00BSC Bowl kit with combined manual / semi-auto drain
P3YKA00BSA Bowl kit with auto drain

Technical Specifications

Maximum Inlet Pressure:
17.5 bar (254 psig)
Temperature Range: 14°F to 140°F
Coalescing efficiency: 99.97% (0.3 to 0.6 micron particles)
Max. oil carryover: 0.008 mg/m3
Typical flow at 6.3 bar inlet pressure, 0.2 bar pressure drop: Dry element
  0.01 micron @ 59 dm3/s
Bowl Capacity: 4.4 oz
Manual / semi-auto drain:
Closed at 0.8 bar (11.6 psig)
  G1/8 thread male
Auto drain powl pressure to close drain: 0.8 bar (11.6 psig)
Operating range manual override facility:
0.8 bar (11.6 psig) to 17.5 bar (254 psig)
