Lubricators | Parker P3Y Series

 P3Y-Lubricator

FEATURES

  • Integral 3/4" or 1" ports
  • Robust, lightweight aluminum construction
  • Proportional oil delivery over a wide range of air flows
  • Possible to fill under system pressure, eliminating down time
  • Large oil reservoir

SYMBOLS

lubricator-symbol
Lubricator with drain

Back to Global FRLS Main Page


Part Numbers


Part Number  Description

Port Size

Flow
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P3YLA96LSNN

Oil mist, fill under pressure

 3/4" 162 (343) 17.5 (254) 247 (9.7)  90 (3.5) 94 (3.7)
P3YLA98LSNN Oil mist, fill under pressure
 1" 184 (390) 17.5 (254) 247    (9.7)
 90 (3.5) 94 (3.7)

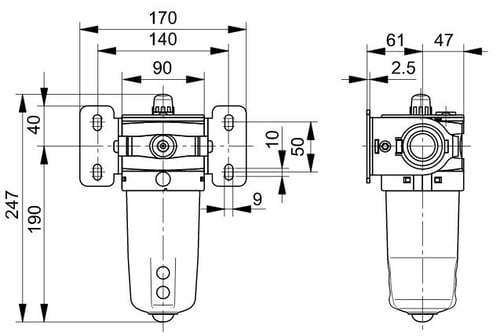

p3y-lubricator-dimensions


Service Kits and Mounting Brackets

Part Number Description
P3YKA00BSN Bowl kit
P3YKA00PL Refill plug

Technical Specifications

Maximum Inlet Pressure:
17.5 bar (254 psig)
Temperature Range:
14°F to 140°F
