 P3Y-Regulator

FEATURES

  • Integral 3/4" or 1" ports
  • Relieving and non-relieving types
  • Reverse flow relieving option
  • Low minimum temperature (-40° F)
  • Robust, lightweight aluminum construction
  • Rolling diaphragm for extended life
  • Secondary pressur ranges 12 and 16 bar
  • Secondary aspiration with rolling diaphragm provides quick response and accurate pressure regulation

SYMBOLS

mini-regulator-self-relieving-symbol p3y-reverse-flow-regulator-symbol mini-regulator-non-relieving-symbol

Self-relieving regulator

Reverse flow relieving regulator

 Non-relieving regulator

Back to Global FRLS Main Page

Part Numbers


Part Number  Description

Port Size

Flow*
Dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)
P3YRA96BNEN

12 bar relieving

  3/4" 155 (328) 17.5 (254) 182 (7.2) 90 (3.5)
P3YRA96BNFN

12 bar relieving + pressure gauge

  3/4" 155 (328) 17.5 (254) 182 (7.2) 90 (3.5)
P3YRA98BNEN 12 bar relieving 1" 321 (680) 17.5 (254) 182 (7.2) 90 (3.5)
P3YRA98BNFN 12 bar relieving + pressure gauge 1" 321 (680) 17.5 (254) 182 (7.2) 90 (3.5)

 * Flow with 6.3 bar (91.4 psig) inlet pressure and 0.5 bar (7.3 psig) pressure drop.

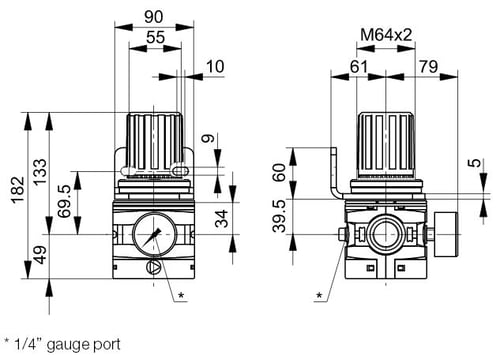

p3y-regulator-dimensions



Service Kits and Mounting Brackets

Part Number Description
P3YKA00MS Angle bracket + metal lock ring
P3YKA00MM Panel mounting kit
P3YKA00RR Diaphragm kit (relieving)
P3YKA00RN Diaphrahm kit (non-relieving)
K4520N14160 1/4" port gauge, 0-160 psig
K4520N14300 1/4" port gauge, 0-300 psig

Technical Specifications

Typical flow with 10 bar (145 psig) inlet pressure, 6.3 bar (91 psig) set pressure and 1 bar (14.5 psig) pressure drop

1" size

321 dm3/s (680 SCFM)
Temperature Range: -40°F to 140°F
Max. Inlet Pressure:
 17.5 bar (254 psig)
Gauge Port (2 ea.): 1/4"






Warning Triangle WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
