Parker Precision Piggyback Filter/Regulators | 27E Series

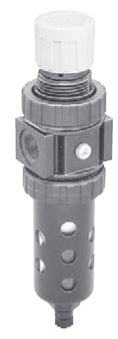

27e-precision-piggyback

FEATURES

  • 1/4" or 3/8" ports
  • Excellent water removal efficiency
  • Fine adjustment sensitivity
  • Good repeatability and minimal pressure drop
  • Brass poppet for long life
  • Non-rising, removable knob
  • Modular with 05 Series FRL

SYMBOLS

Regulator-Symbol-1

Back to Precision Regulators Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Height (E)

mm (in)

Width (A)

mm (in)

Depth (B)

mm (in)

27E12A11A

Poly bowl w/bowl guard, twist drain, 60 psig, NPT port

1/4" 20 216 (8.51)  51 (2.00) 52 (2.06)
27E14A11A

Metal bowl w/sight gauge, twist drain, 60 psig, NPT port

1/4" 20 216 (8.51)  51 (2.00) 52 (2.06)
27E12A13A

Poly bowl w/sight gauge, twist drain,  125 psig, NPT port

 1/4" 20 216 (8.51)  51 (2.00) 52 (2.06)
27E14A13A Metal bowl w/sight gauge, twist drain, 125 psig, NPT port 1/4" 20 216 (8.51)  51 (2.00) 52 (2.06)
27E22A11A Poly bowl w/sight gauge, twist drain,  60 psig, NPT port 3/8" 20 216 (8.51)  51 (2.00) 52 (2.06)
27E24A11A Metal bowl w/sight gauge, twist drain, 60 psig, NPT port 3/8" 20 216 (8.51)  51 (2.00) 52 (2.06)
27E22A13A Poly bowl w/sight gauge, twist drain,  125 psig, NPT port 3/8" 20 216 (8.51)  51 (2.00) 52 (2.06)
27E24A13A Metal bowl w/sight gauge, twist drain, 125 psig, NPT port 3/8" 20 216 (8.51)  51 (2.00) 52 (2.06)

Add a "1" to the end of the part number for BSPP ports. Add a "2" to the end of the part number for BSPT ports. See ordering information chart below for other pressure ranges, filter elements and  drain options.

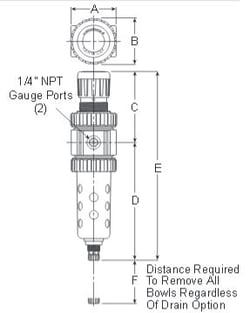

27e-precision-piggyback-dimensions

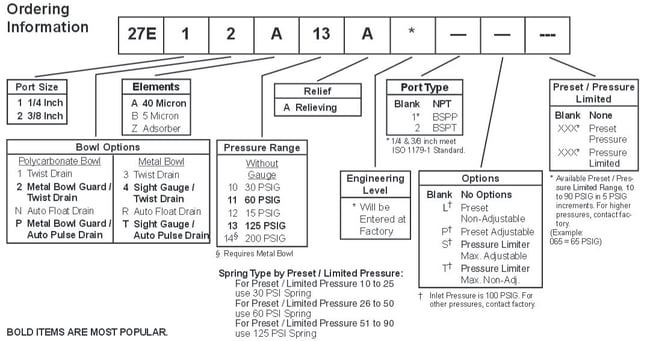

27e-precision-piggyback-ordering


Service Kits and Accessories

Part Number Description
K4515N14030 30 psig, 1-1/2" dial face (0 to 2.1 bar)
K4515N14060 60 psig, 1-1/2" dial face (0 to 4.1 bar)
K4515N14160 160 psig, 1-1/2" dial face (0 to 11.0 bar)
K4515N14300 300 psig, 1-1/2" dial face (0 to 20.0 bar)
K4520N14060 60 psig, 2" dial face (0 to 4.1 bar)
K4520N14160 160 psig, 2" dial face (0 to 11.0 bar)
K4520N14300 300 psig, 2" dial face (0 to 20.0 bar)
PS964P Panel mount nuts - metal
PS910P Bonnet assembly kit
P0442001 Control knob

Technical Specifications



Flow Capacity: 33 scfm @ 100 psig (6.9 bar)
Operating Temperature:

32°F to 125°F - poly

32°F to 175°F - metal

Max. Pressure Rating:

10.3 bar (150 psig) - poly

17.2 bar (250 psig) - metal

Bowl Capacity: 2 oz
Port Size: 1/4", 3/8" (NPT, BSPP, BSPT)
Weight: 1.35 lbs (0.6 kg)
