Parker Precision Regulators | 27R Series

 27r-precision-regulator

FEATURES

  • 1/4" or 3/8" ports
  • Fine adjustment sensitivity
  • Good repeatability and minimal pressure drop
  • Brass poppet for long life
  • Non-rising, removable knob
  • Modular with 05 Series FRL

SYMBOLS

Regulator-Symbol-1

Back to Precision Regulators Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Height (E)

mm (in)

Width (A)

mm (in)

Depth (B)

mm (in)

27R112A

15 psig, NPT port

1/4" 25 114 (4.44)  51 (2.00) 52 (2.06)
27R110A

30 psig, NPT port

1/4" 25 114 (4.44)  51 (2.00) 52 (2.06)
27R114A

60 psig, NPT port

 1/4" 25 114 (4.44)   51 (2.00) 52 (2.06)
27R113A 125 psig, NPT port
1/4" 25 114 (4.44)  51 (2.00) 52 (2.06)
27R212A 15 psig, NPT port 3/8" 25 114 (4.44)  51 (2.00) 52 (2.06)
27R210A 30 psig, NPT port 3/8" 25 114 (4.44)  51 (2.00) 52 (2.06)
27R214A 60 psig, NPT port 3/8" 25 114 (4.44)  51 (2.00) 52 (2.06)
27R213A 125 psig, NPT port 3/8" 25 114 (4.44)  51 (2.00) 52 (2.06)

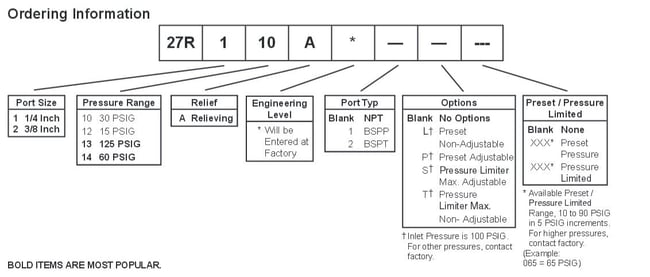

Add a "1" to the end of the part number for BSPP ports. Add a "2" to the end of the part number for BSPT ports. See ordering information chart below for other pressure ranges and options.


27r-precision-regulator-dimensions



27r-precision-regulator-dimensions-ordering

Service Kits and Accessories

Part Number Description
K4515N14030 30 psig, 1-1/2" dial face (0 to 2.1 bar)
K4515N14060 60 psig, 1-1/2" dial face (0 to 4.1 bar)
K4515N14160 160 psig, 1-1/2" dial face (0 to 11.0 bar)
K4515N14300 300 psig, 1-1/2" dial face (0 to 20.0 bar)
K4520N14060 60 psig, 2" dial face (0 to 4.1 bar)
K4520N14160 160 psig, 2" dial face (0 to 11.0 bar)
K4520N14300 300 psig, 2" dial face (0 to 20.0 bar)
PS964P Panel mount nuts - metal
PS910P Bonnet assembly kit
P0442001 Control knob

Technical Specifications



Flow Capacity: 28 scfm @ 100 psig (6.9 bar)
Operating Temperature:

32°F to 175°F

Max. Inlet Pressure: 17.2 bar (250 psig)
Port Size: 1/4", 3/8" (NPT, BSPP, BSPT)
Weight: 1.0 lbs (0.45 kg)
