Parker Relieving Dial Regulators | 51R Series

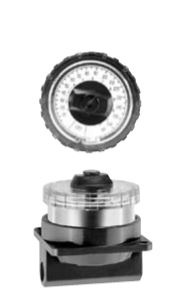

51r-relieving-dial-regulator


FEATURES

  • 1/4" ports
  • Self-relieving
  • Pressure reference indicating dial face
  • Non-rising, pressure adjustment dial
  • Full pressure adjustment in less than one full turn
  • Recommended for pilot-air applications

SYMBOLS

Regulator-Symbol-1

Back to Precision Regulators Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Height (A)

mm (in)

Width (H)

mm (in)

51R126R

Standard pressure - 5 to 160 psig (0.34 to 11 bar)

1/4" 0.7 71 (2.80)  56 (2.20)
51R125R

Low pressure - 2 to 40 psig (0.14 to 3 bar)

1/4" 0.7 71 (2.80) 56 (2.20)

*For BSPP ports, add a "1" to the end of the part number.


51r-relieving-dial-regulator-dimensions

Service Kits and Accessories

Part Number Description
RRP-16-024-80 Adjustment dial knob
RRP-95-906-80 Spring, regulation, Bellville washer - 2 to 40 psig
RRP-95-905-80 Spring, regulation, Bellville washer - 5 to 160 psig
RRP-95-765-80 Piston and bonnet repair kit
RRP-96-934-80 Valve, pilot with o-ring and valve spring

Technical Specifications



Flow Capacity: 0.7 scfm
Max Operating Temperature: 150°F
Max. Supply Pressure: 20.7 bar (300 psig)
Port Size: 1/4" (NPT, BSPP)
Weight: 1.3 lbs (0.5 kg)
