Parker Relieving Dial Regulators | 52R Series

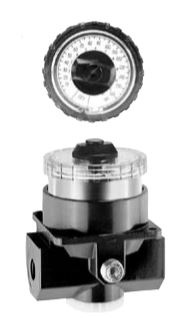

52r-relieving-dial-regulator


FEATURES

  • 1/4", 3/8", 1/2" and 3/4" ports
  • Balanced poppet design
  • Non-rising, pressure adjustment dial
  • Piston operated
  • High-relief flow

SYMBOLS

Regulator-Symbol-1

Back to Precision Regulators Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Height (A)

mm (in)

Width (H)

mm (in)

52R126R

Standard pressure - 5 to 160 psig (0.34 to 11 bar)

1/4" 117 104 (4.10)  56 (2.20)
52R125R

Low pressure - 2 to 40 psig (0.14 to 3 bar)

1/4" 117 104 (4.10) 56 (2.20)
52R226R

Standard pressure - 5 to 160 psig (0.34 to 11 bar)

3/8" 180 104 (4.10) 56 (2.20)
52R225R Low pressure - 2 to 40 psig (0.14 to 3 bar) 3/8" 180 104 (4.10) 56 (2.20)
52R326R Standard pressure - 5 to 160 psig (0.34 to 11 bar) 1/2" 195 104 (4.10) 56 (2.20)
52R325R Low pressure - 2 to 40 psig (0.14 to 3 bar) 1/2" 195 104 (4.10) 56 (2.20)
52R426R Standard pressure - 5 to 160 psig (0.34 to 11 bar) 3/4" 220 104 (4.10) 56 (2.20)
52R425R Low pressure - 2 to 40 psig (0.14 to 3 bar) 3/4" 220 104 (4.10) 56 (2.20)

*For BSPP ports, add a "1" to the end of the part number.

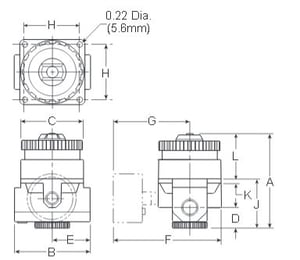

52r-relieving-dial-regulator-dimensions



Service Kits and Accessories

Part Number Description
RRP-16-024-80 Adjustment dial knob
RRP-95-906-80 Spring, regulation, Bellville washer - 2 to 40 psig
RRP-95-905-80 Spring, regulation, Bellville washer - 5 to 160 psig
RRP-95-766-80 Piston and bonnet repair kit
RRP-96-934-80 Valve, pilot with o-ring and valve spring

Technical Specifications



Flow Capacity: 117 scfm (1/4"), 180 scfm (3/8"), 195 scfm (1/2"), 220 scfm (3/4")
Max Operating Temperature: 150°F
Max. Supply Pressure: 20.7 bar (300 psig)
Port Size: 1/4", 3/8", 1/2", 3/4" (NPT, BSPP)
Weight: 2.3 lbs (1.04 kg)
